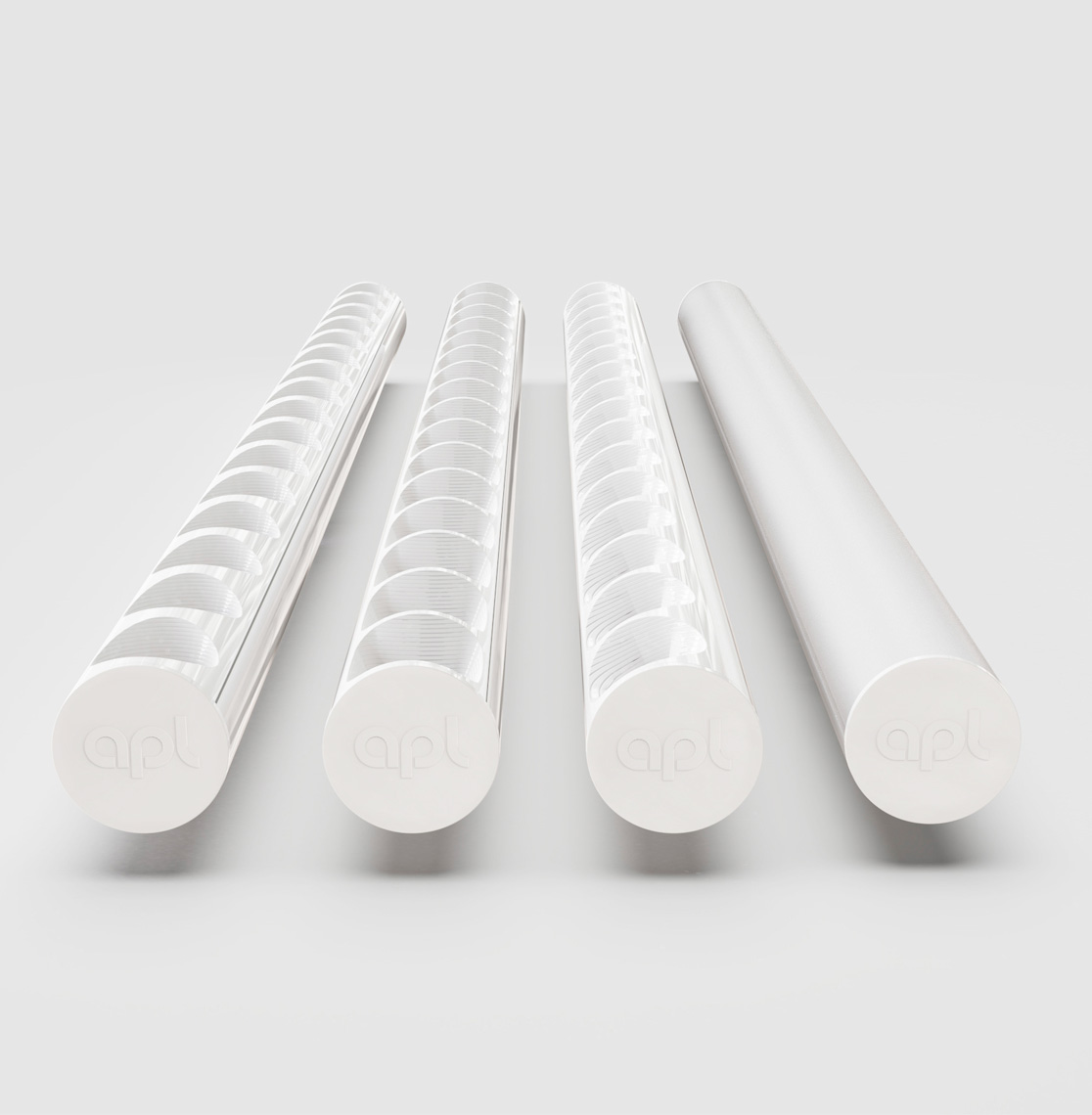

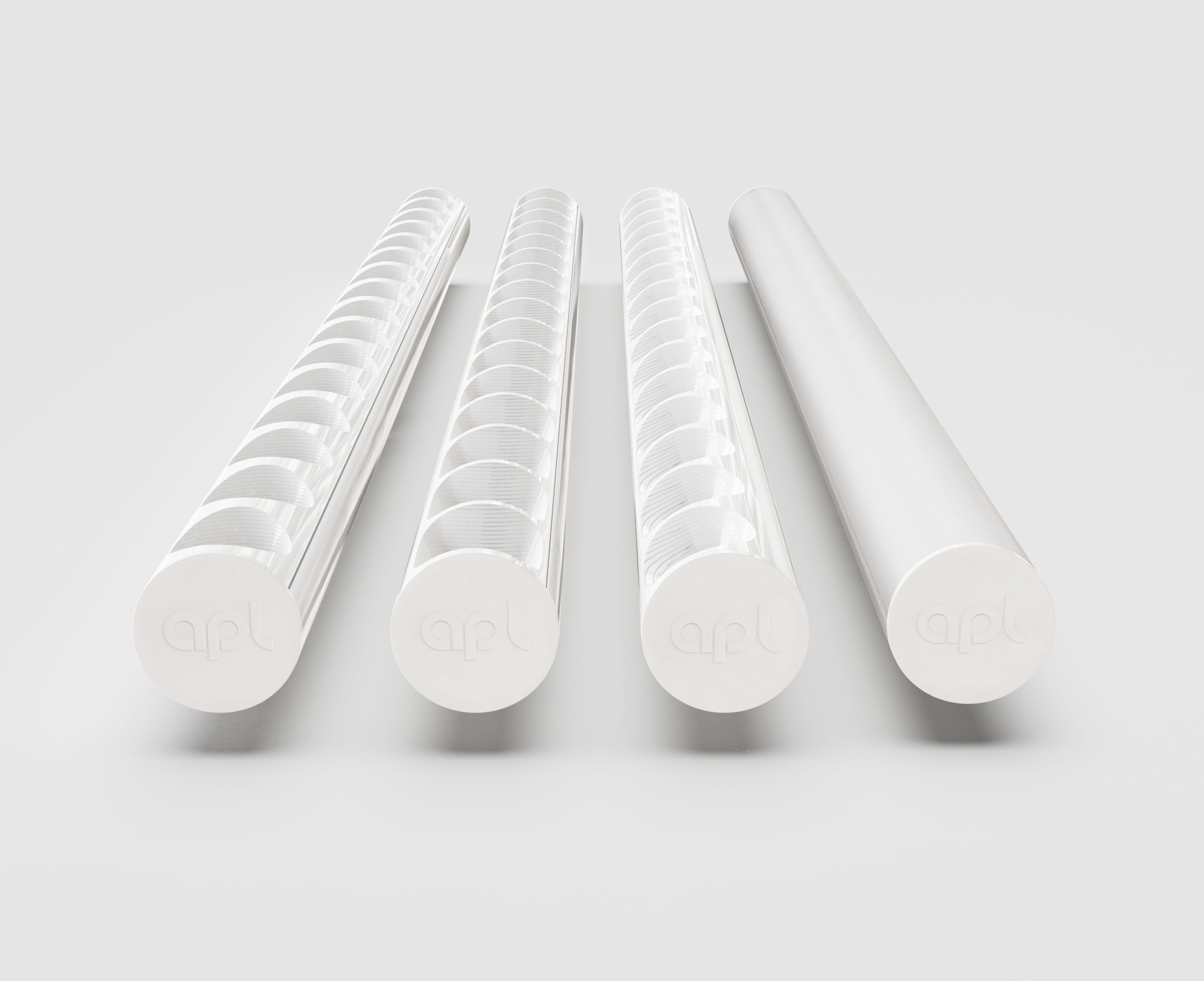

LTwo® comes in 4 basic looks and two colors. The looks are determined by the functional design of the optics/louver. Round louver: 10°, 13°, 25°, 40°, Batwing Narrow (BWN), and oval optic (13° x 40°). Rectangular louver: 60° and Batwing Wide (BWW). Asymmetric louver: Wall Wash (WW). Round LTwo®: clear, diffuse, or opal cover.

The color of the housing and the anti-glare are available in white and black. A white LTwo® comes with a white anti-glare and a black LTwo® with a black anti-glare. Other combinations and colors might be available on request depending on the volume.

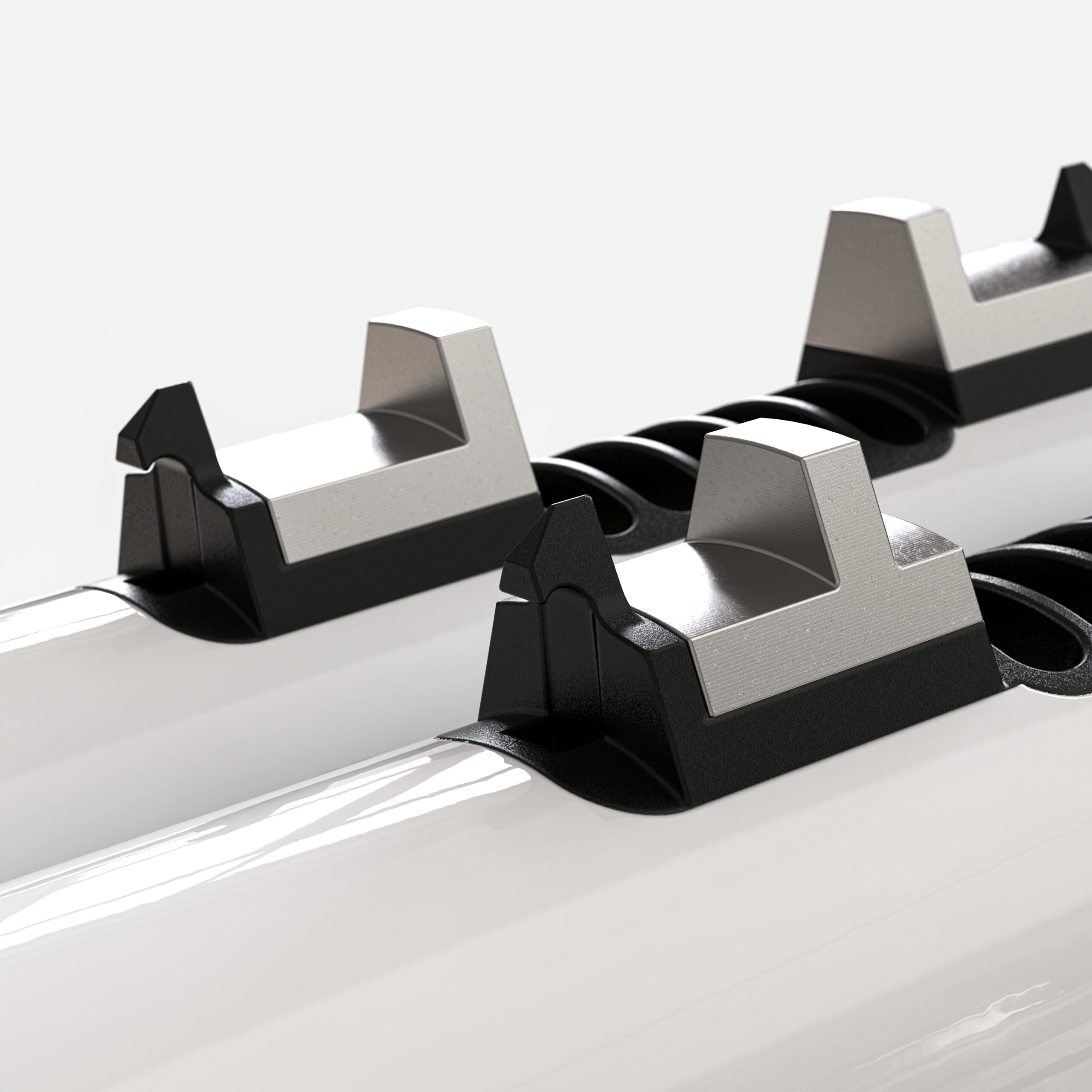

LTwo® is available in Constant Current (CC) or Constant Voltage (CV). Constant Voltage provides more flexibility if more lamps are used on a single driver. It’s less efficient than CC, and the drivers are more expensive. Constant Current is more efficient than CV. The drivers are less expensive and available in more sizes and with more lighting control (smart) options. A maximum of two lamps can be connected to one driver in CC mode. CC requires more wiring during installation.

In Constant Voltage (CV), two power levels are available: either 12 W/m or 20 W/m. The product can be dimmed with PWM. In Constant Current (CC), the product has a rated power of 25 W/m @ 600 mA drive current. It can be driven at higher currents for more lumen output, as long as proper heat management is ensured.

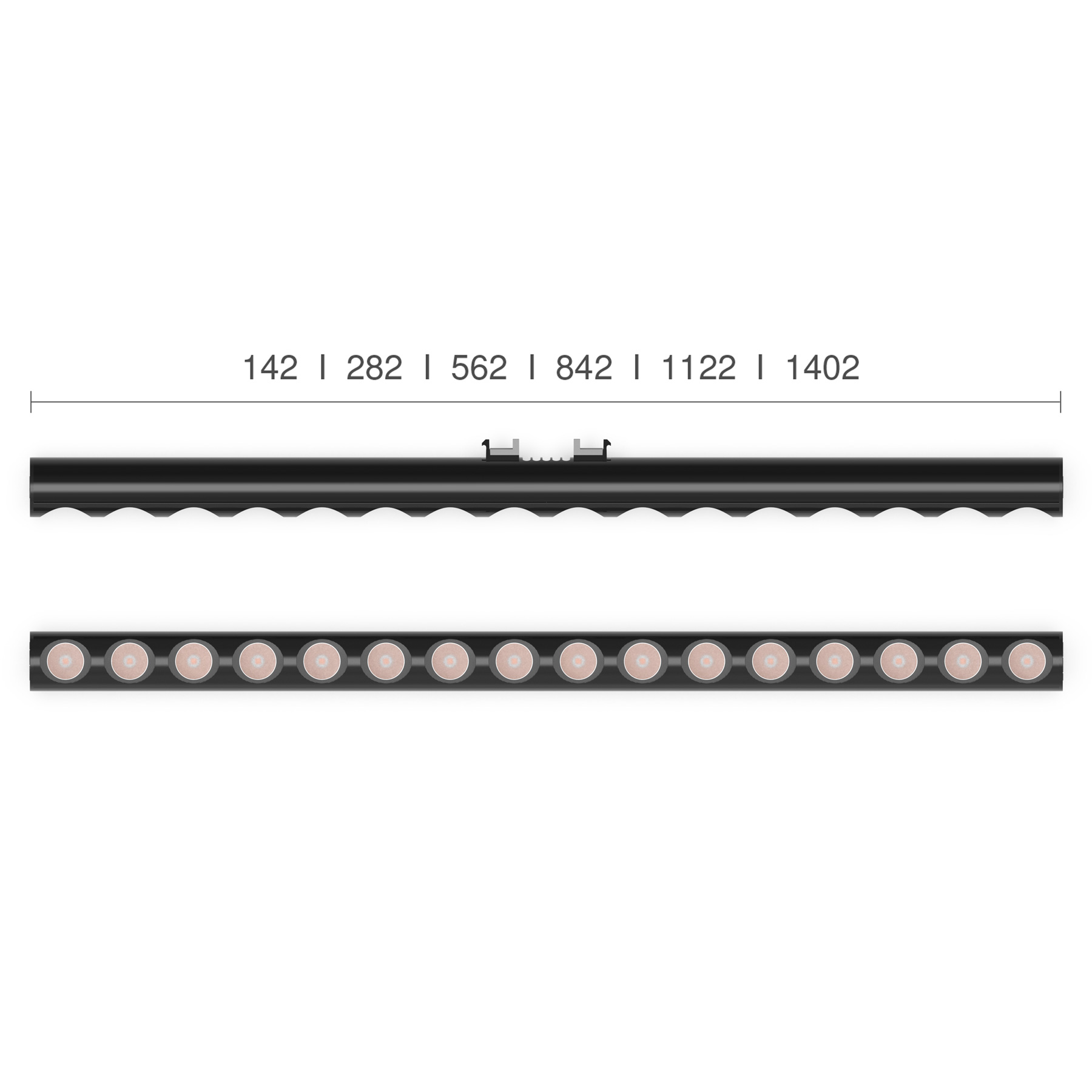

LTwo® comes in lengths of 142 mm (1/2 ft), 282 mm (1 ft), 562 mm (2 ft), 842 mm (3 ft), 1,120 mm (4 ft), and 1,400 mm (5 ft). Depending on operating current and nominal power, the output of the light source ranges from 1.8 W / 240 lumens to 35 W / 5,600 lumens. For details regarding the precise performance data, depending on the optic used, please refer to the specific datasheet.

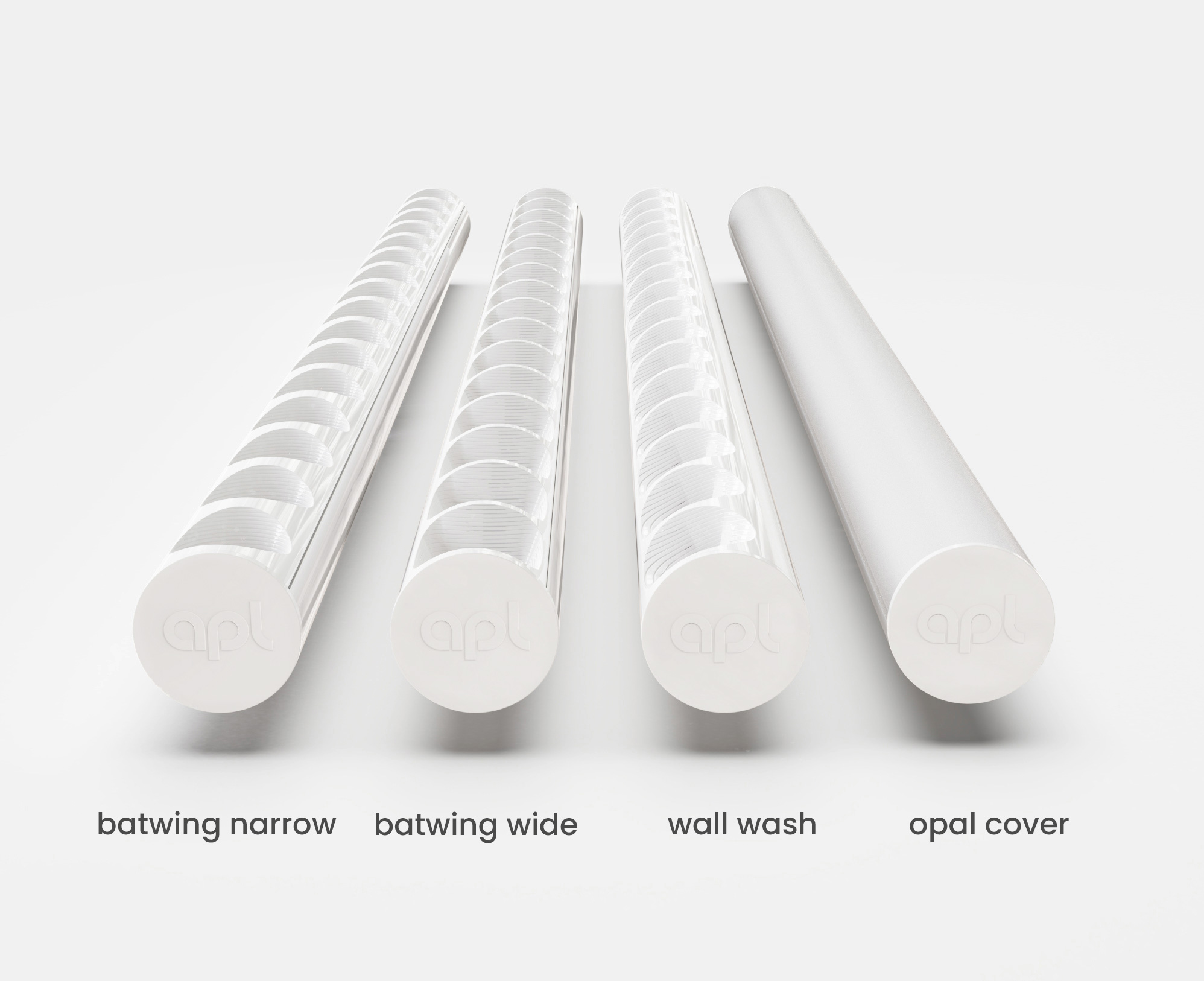

The entire product range is offered with 12 different high-performance architectural lighting optics, meeting the highest standards in uniformity, color-over-angle, and glare control. The optics are available in 10° HB, 13° Spot, 25° Narrow Flood, 40° Flood, 60° Wide Flood, 90° Extra Wide Flood (coming soon), Batwing Narrow (BWN), Batwing Wide (BWW), Wall Wash (WW), a clear lens (max. efficiency), and a frosted and opal lens with Lambertian characteristics.

With the offered lumen packages and optical range, the LTwo® is suited for all kinds of lighting applications.

You can select from five color temperatures (and soon tunable white): 2700 K, 3000 K, 3500 K, and 4000 K in CRI > 92, and 5000 K in CRI > 80.

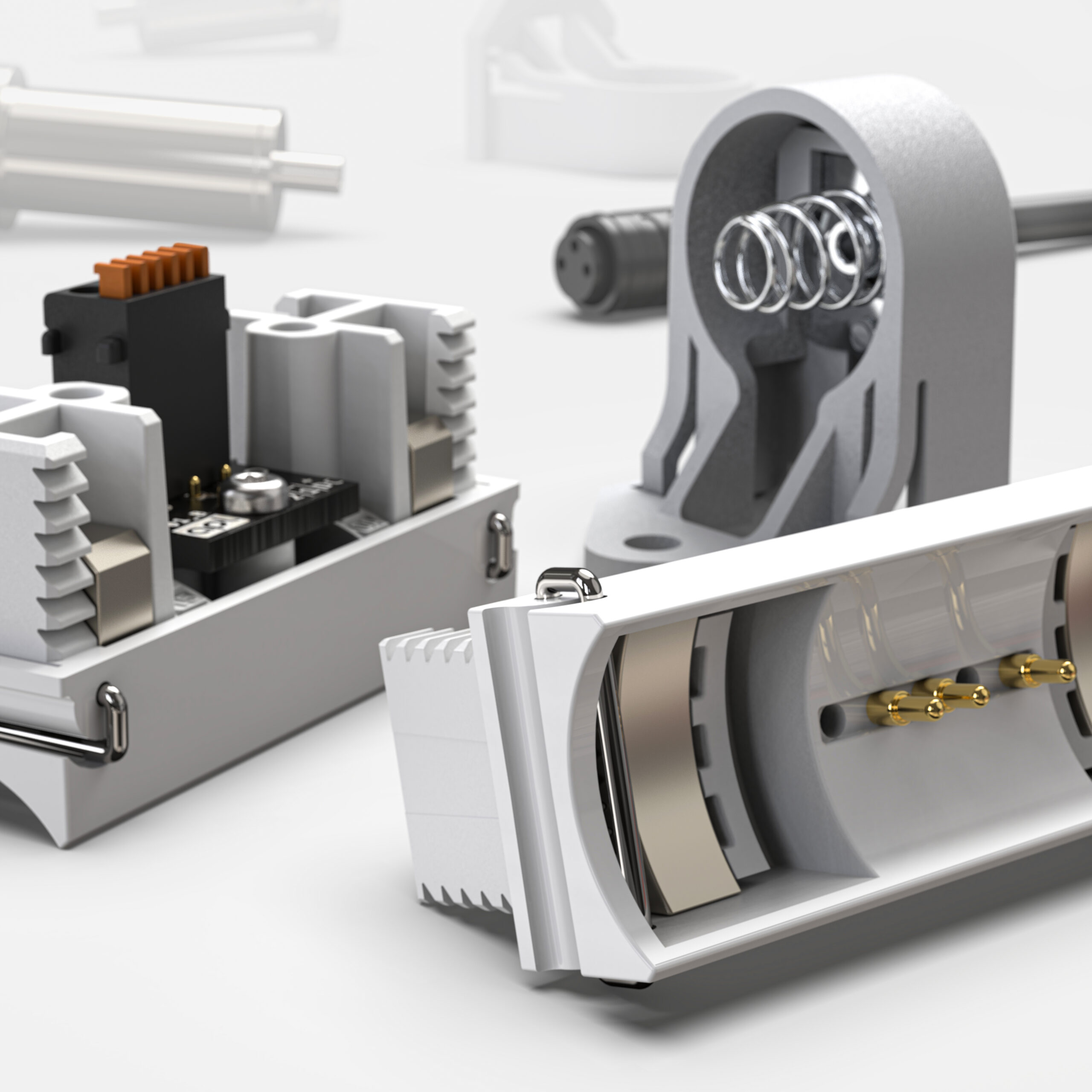

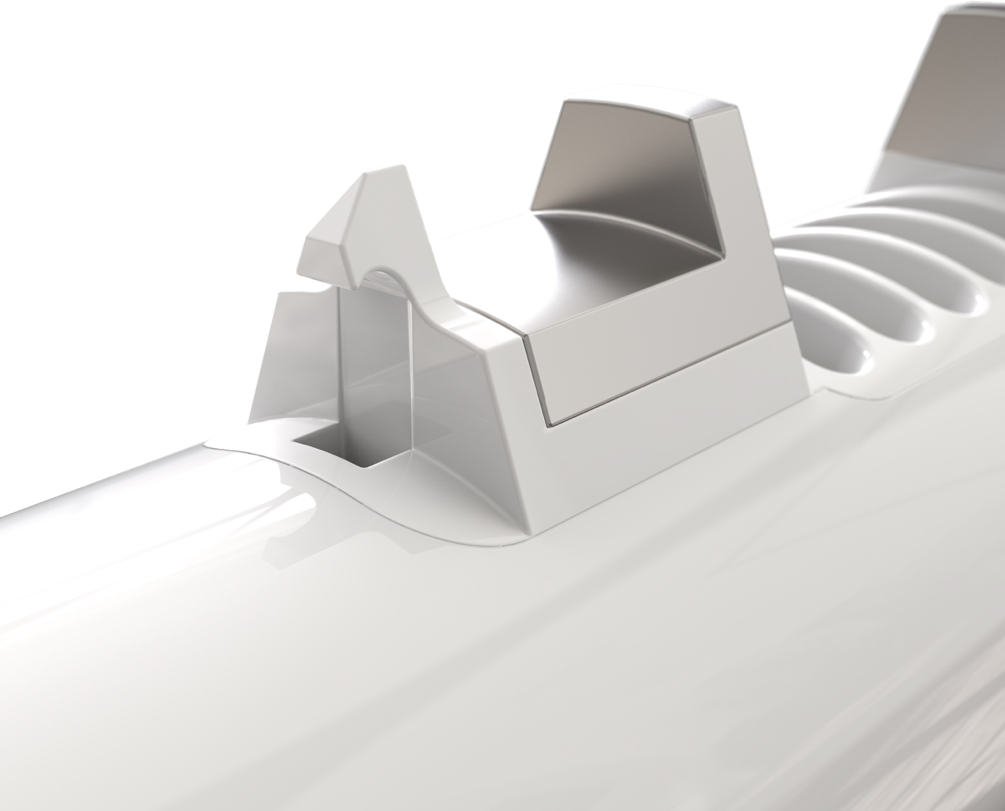

The main and initial lampholder of LTwo® is a magnetic holder (MAG). The product can easily be assembled, swiveled +/- 20° in the socket, and held in place with a security lock. A purely mechanical lampholder (MCH) is currently in the design phase. A battery-like lampholder (BC) offers a very cost-efficient solution for OEM designs. It comes as a pendant version (PD) with current-carrying suspension wires. The M8 IP67 lampholder (M8) is used for the outdoor LTwo® only.

The product comes in protection class IP20 (MAG, MCH, BC, PD) and as an outdoor version in IP67 (M8). Even in the outdoor version, you can select from all available optics, which makes LTwo® a very unique and versatile product for outdoor lighting.

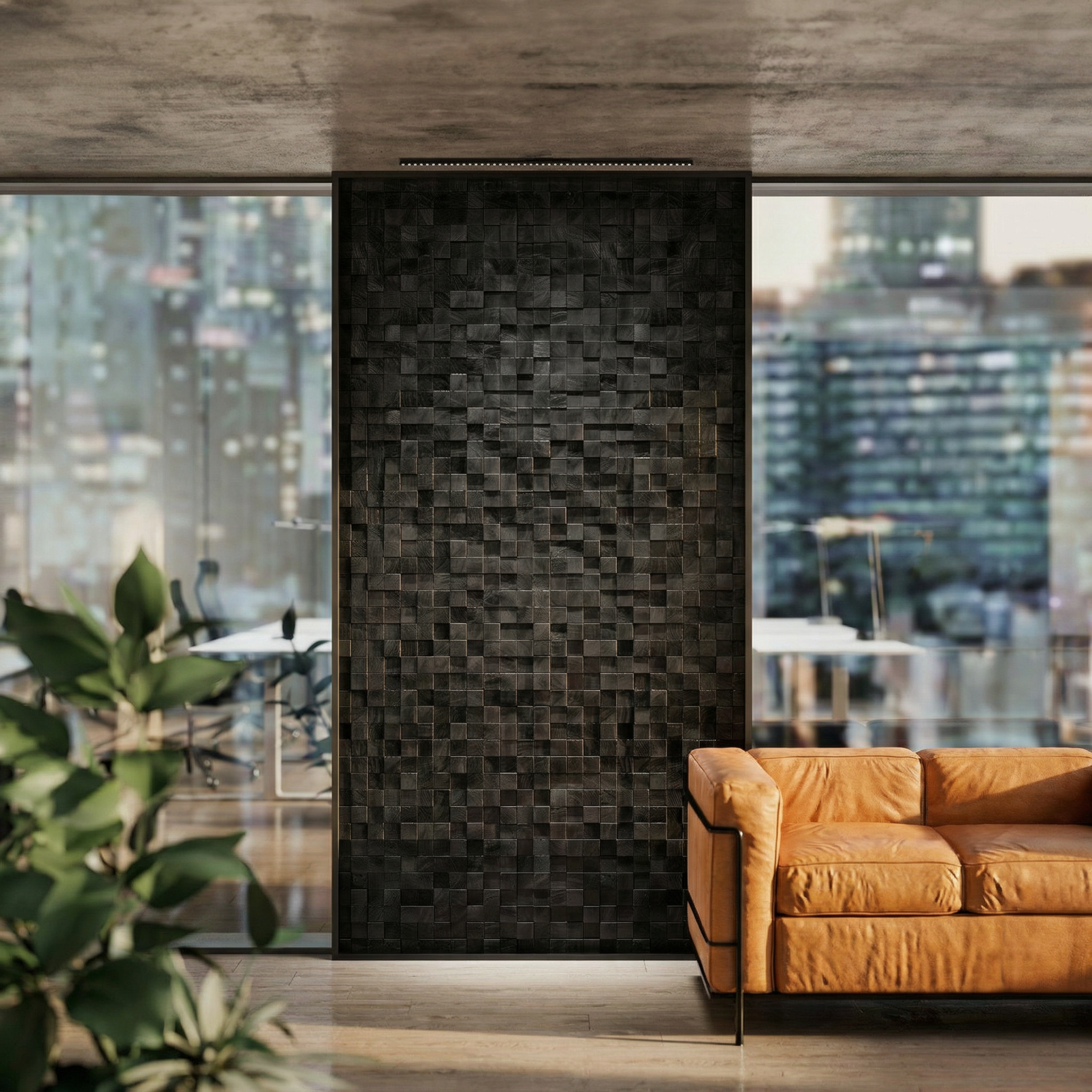

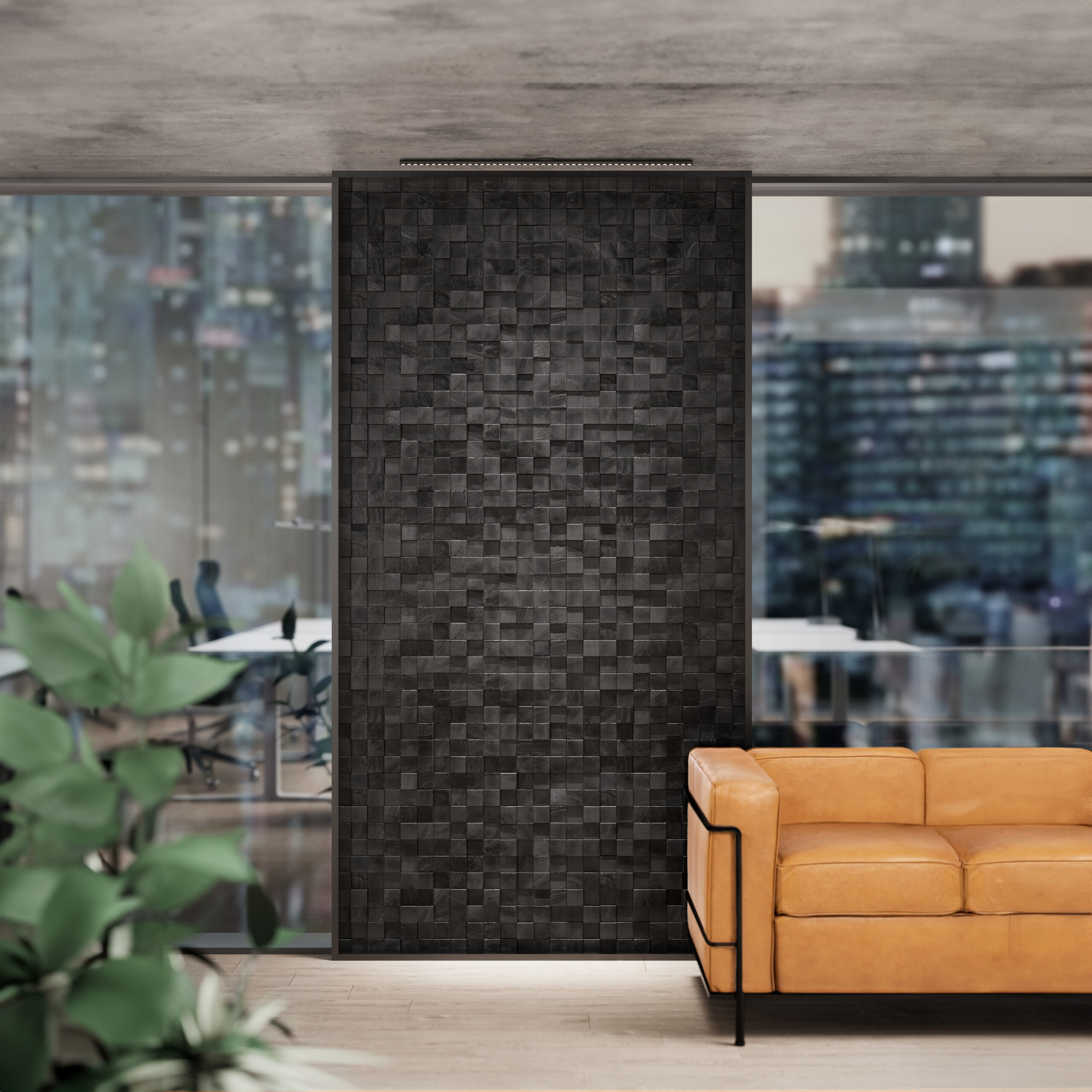

This solution creates a dramatic effect by casting light along walls, highlighting textures and architectural features. The precise lighting ensures an even wash of light, enhancing the visual impact of surfaces and adding depth to the space. Ideal for accentuating walls in galleries, retail spaces, or modern interiors, it offers a subtle yet powerful lighting effect. The sleek design ensures seamless integration into any environment, while providing flexible lighting control for a tailored atmosphere.

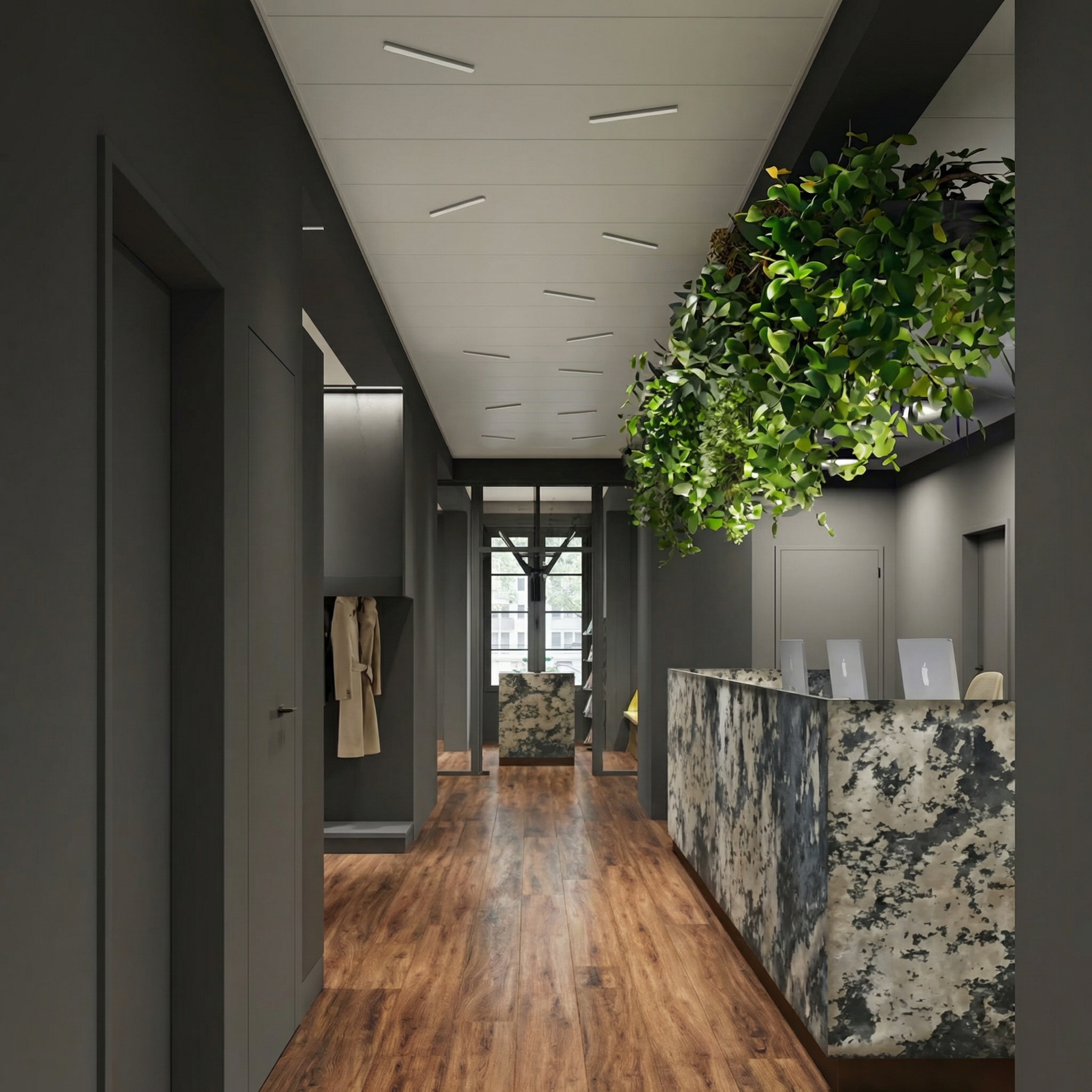

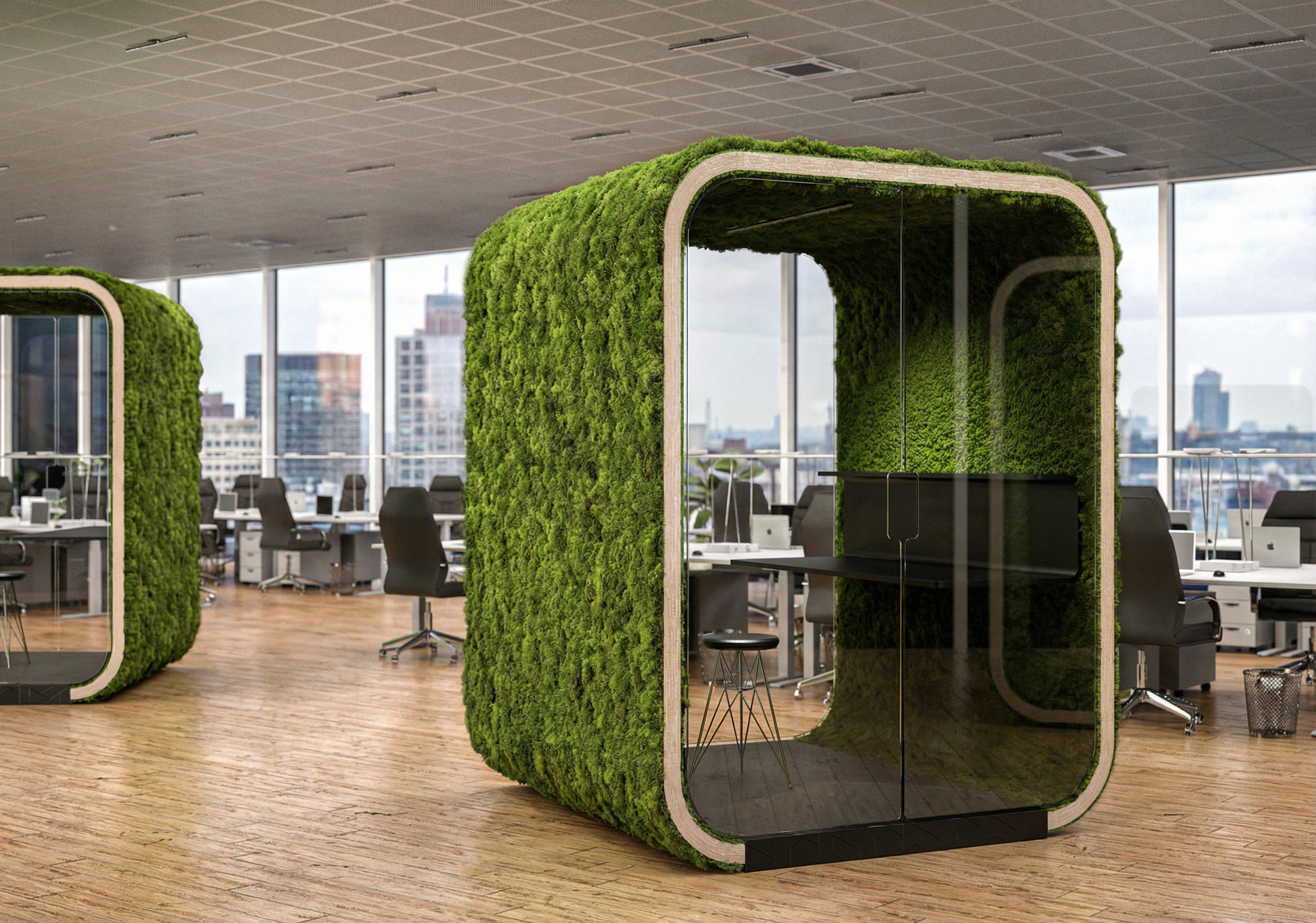

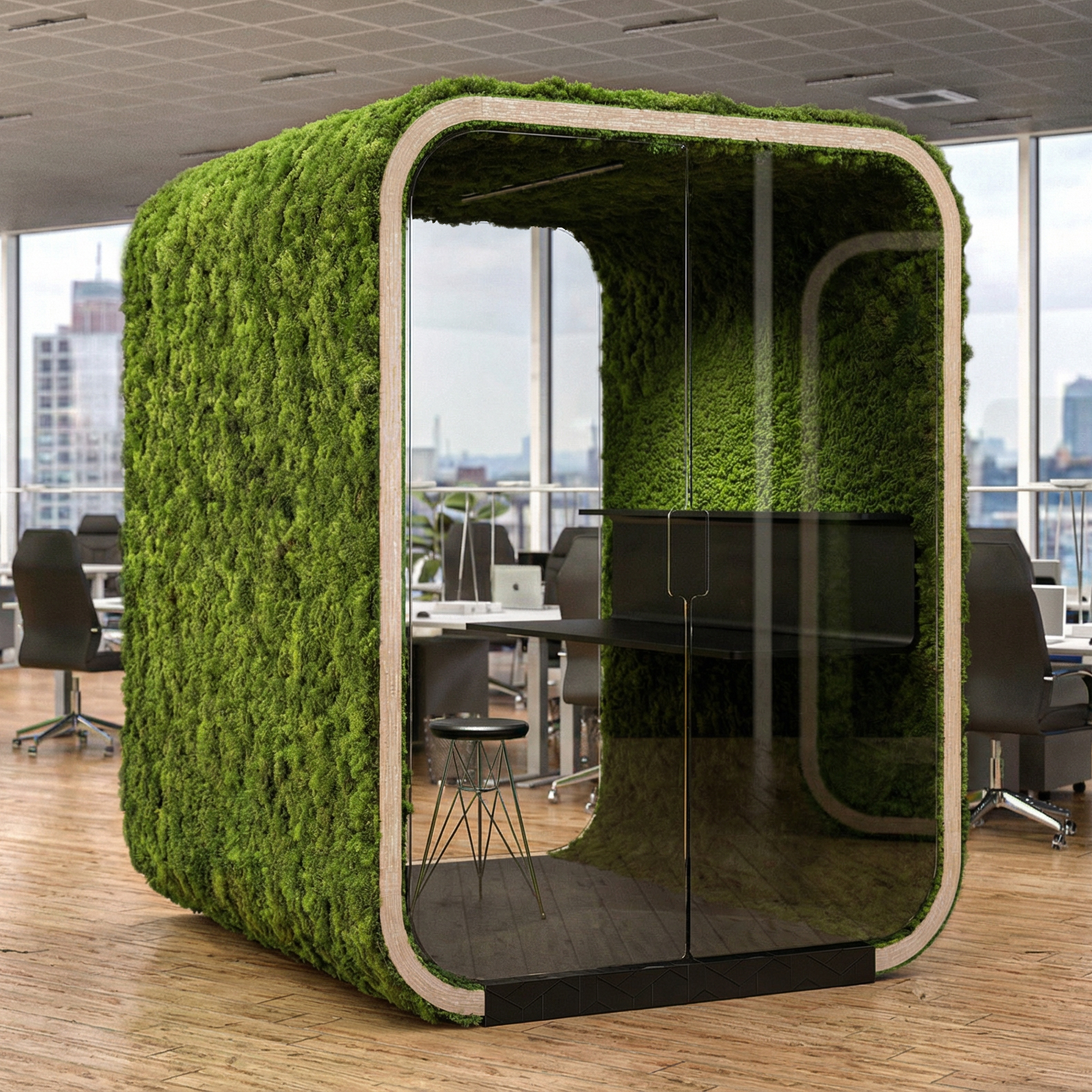

This office partition system combines modern comfort with innovative lighting technology. The integrated LTwo® lighting provides uniform, glare-free illumination, promoting a productive and pleasant working environment. The slim design makes efficient use of space, while the lighting is optimally distributed without taking up additional room. Ideal for modern offices and co-working spaces, it provides both functional lighting and an aesthetic solution for everyday work.

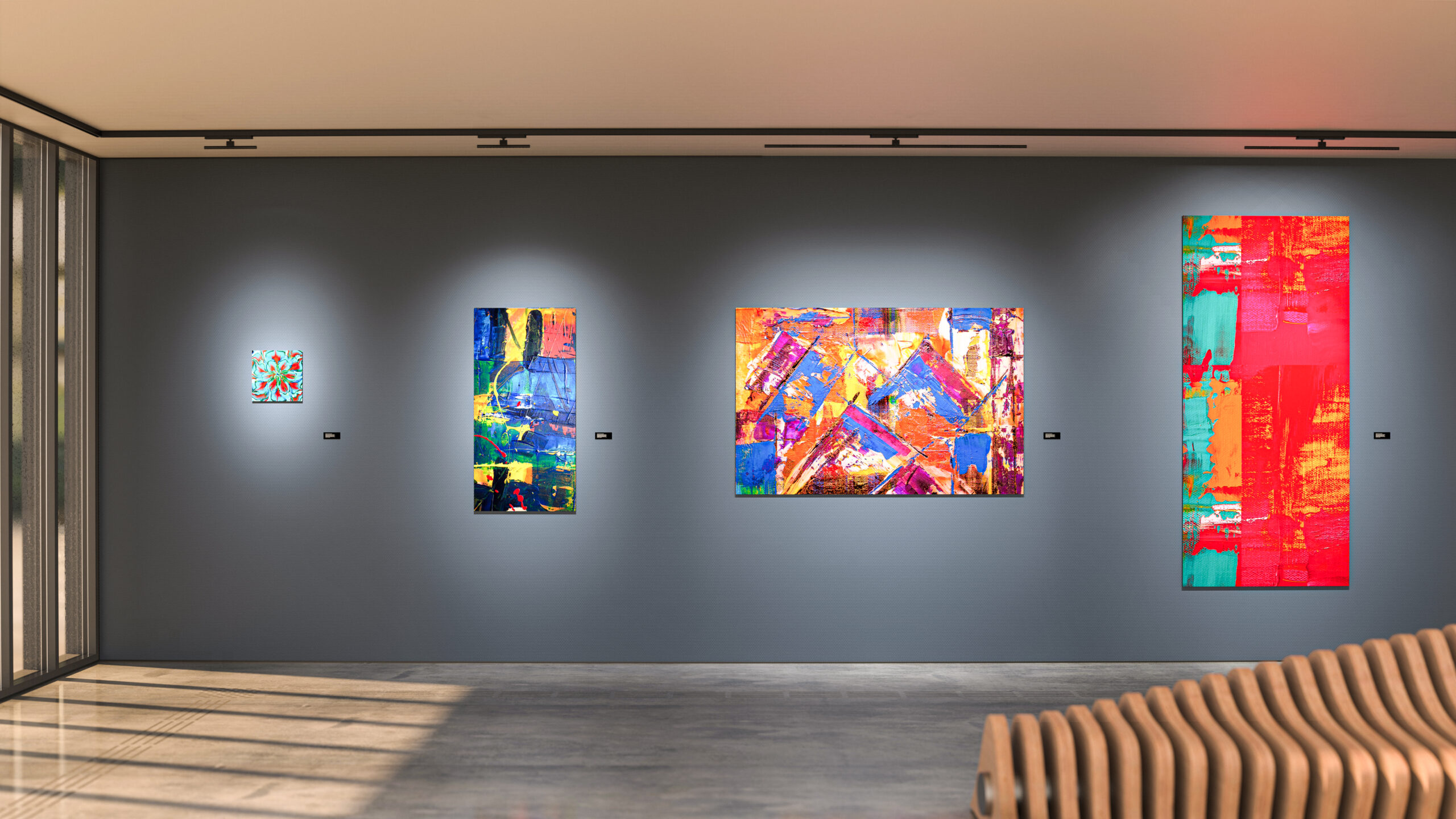

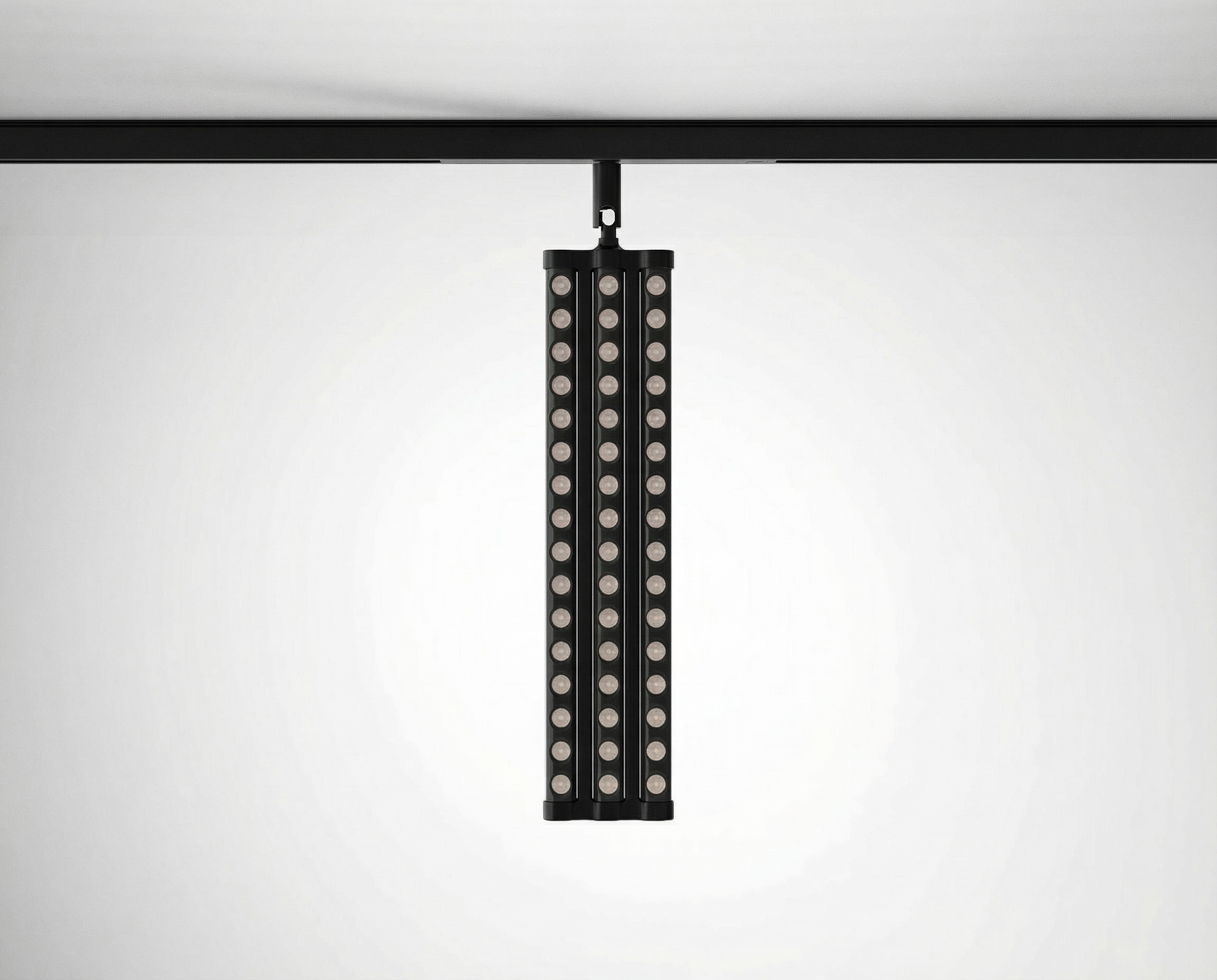

This system offers a precise and flexible lighting solution for sophisticated exhibitions. With modern track technology, it allows spotlights to be targeted to set the scene for works of art. The elegant design and easy installation make it ideal for galleries, museums, or exhibition spaces where high-quality and customizable lighting is required. The uniform light distribution ensures that every work of art is perfectly highlighted without any unwanted glare.

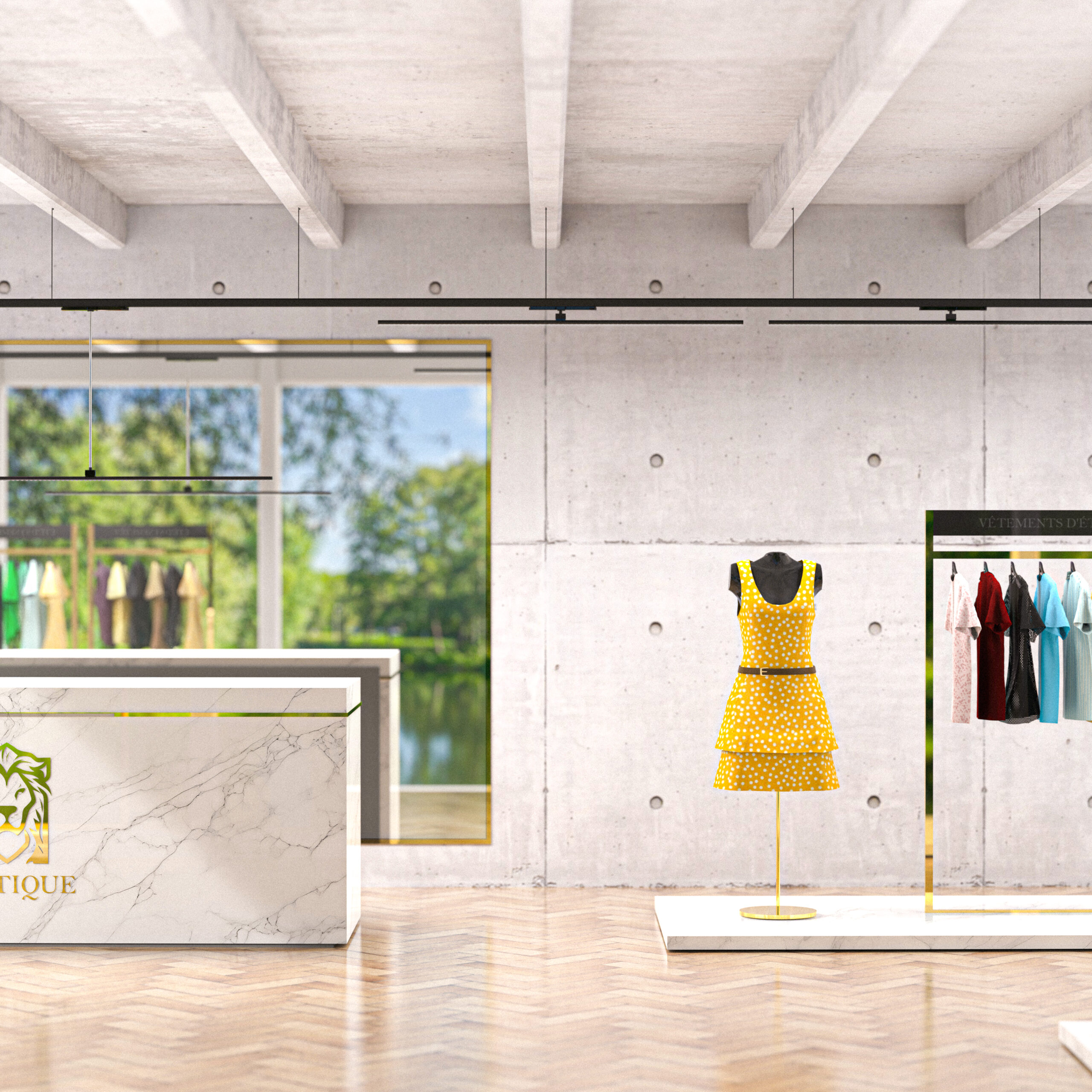

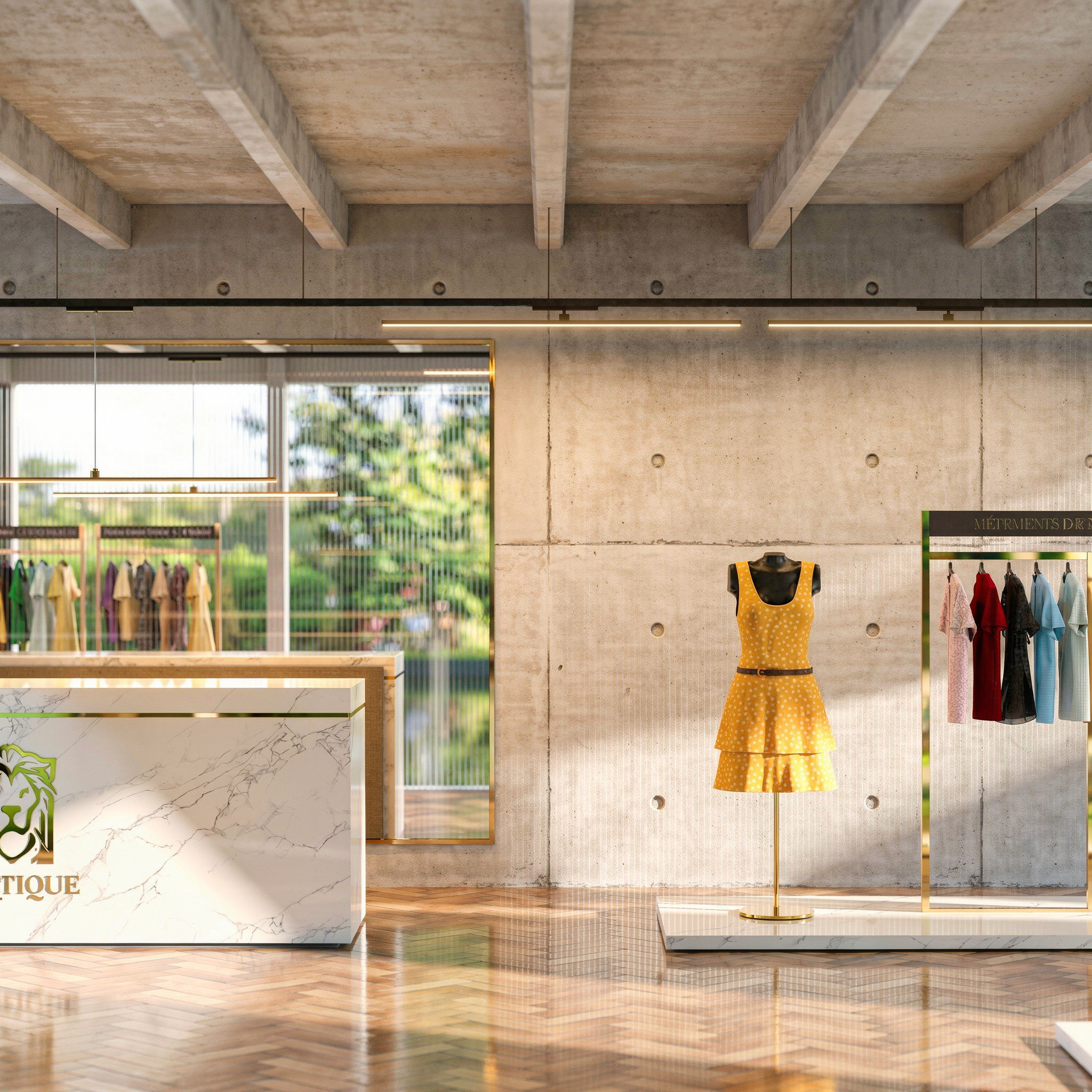

This system offers a flexible and efficient lighting solution for the retail sector. With its modern track technology, it enables the targeted illumination of products and sales areas in order to show them off to their best advantage. The elegant design and easy adaptability make it ideal for stores, boutiques or showrooms. The uniform and adjustable light distribution creates a pleasant shopping atmosphere and draws attention to specific products.

This solution offers a discreet and seamless integration of lighting into suspended ceilings. The LTwo® flush box ensures a clean, flush installation that enhances the overall aesthetic of the space while providing efficient and uniform illumination. Ideal for modern office environments, commercial spaces, or residential interiors, it offers a minimalist design that blends effortlessly with the ceiling, providing a sleek and functional lighting solution without compromising on performance.

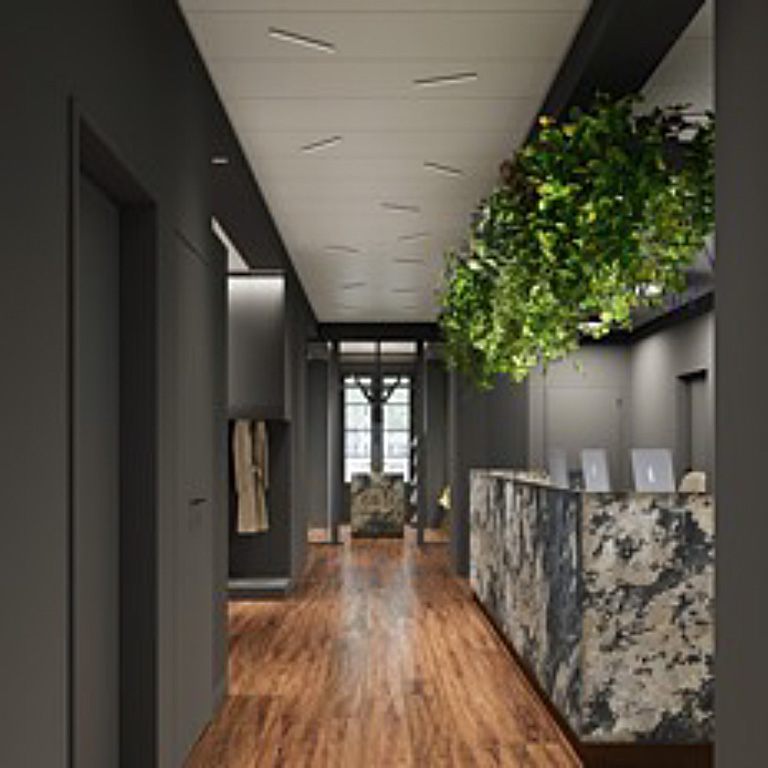

This solution seamlessly integrates lighting into ceiling panels, offering a sleek and modern design. The rectangular holder ensures a stable and discreet installation, while the lighting provides an even, efficient illumination. Ideal for contemporary office spaces, commercial areas, or residential interiors, it combines functionality with aesthetics. The system’s versatility allows for easy customization of light intensity, creating the perfect ambiance for any environment.

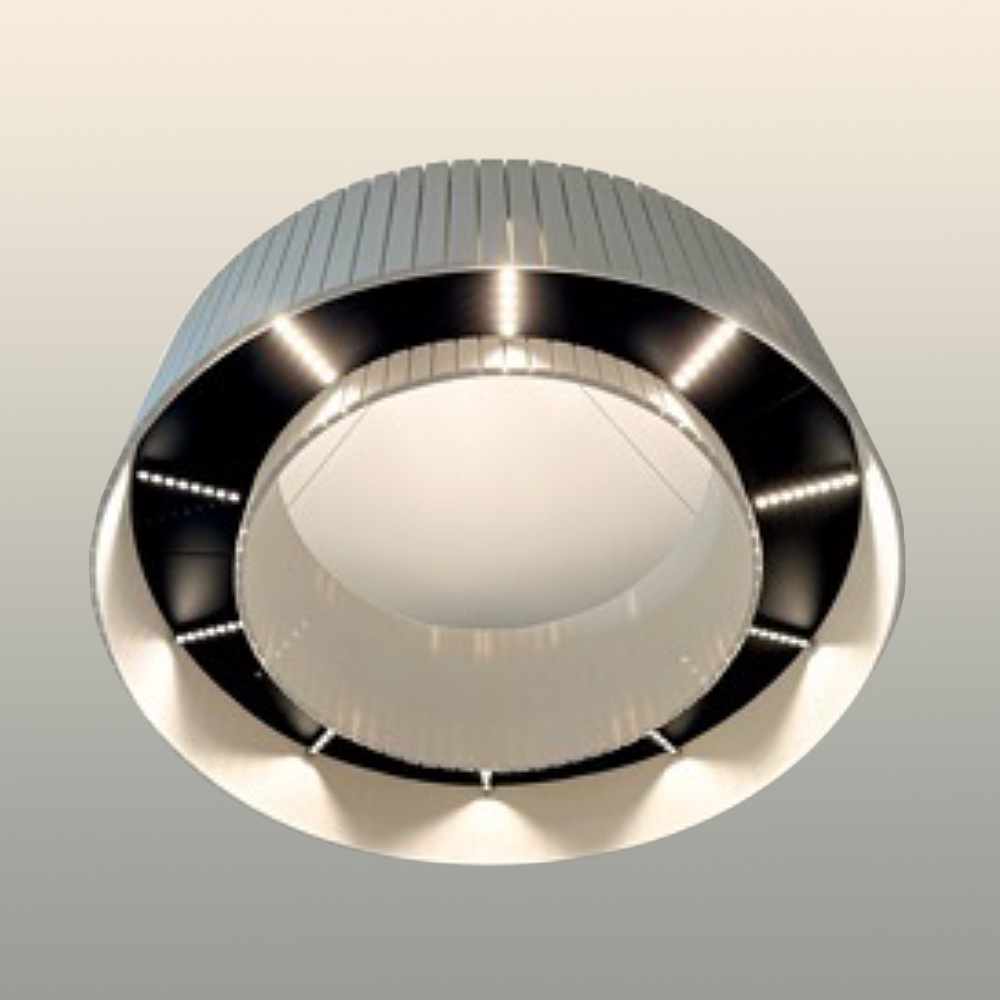

This solution combines advanced lighting technology with custom-built acoustic fixtures. The versatile LTwo® system integrates seamlessly with mounting accessories to create a tailored lighting and sound solution. Perfect for spaces that require both optimal lighting and enhanced acoustics, it offers flexibility in design and installation. Ideal for offices, meeting rooms, or public spaces, it delivers a harmonious balance of functionality, comfort, and style, while improving both the visual and auditory experience in any environment.

LTwo® – Light Tube with Optics and MAG – Magnetic Socket

The LTwo® MAG is part of the modular, compact LTwo® light source/luminaire system, featuring 12 high-quality precision optics and an extensive range of accessories for all lighting applications, delivering up to 6,400 lumens. The system includes a newly developed magnetic, multifunctional lampholder that allows for easy, tool-free installation and angle adjustment in ±20° steps, with a secure locking function for stability.

LTwo® MAG features a coded socket that ensures safe operation with various lampholders in both Constant Voltage and Constant Current modes. Its environmentally friendly design minimizes material use (180 g/m²), supports interchangeability, is fully recyclable, and offers high efficiency (up to 193 lm/W). It is perfect for integration into buildings, materials, or luminaires and can be combined with a wide array of accessories from apl.

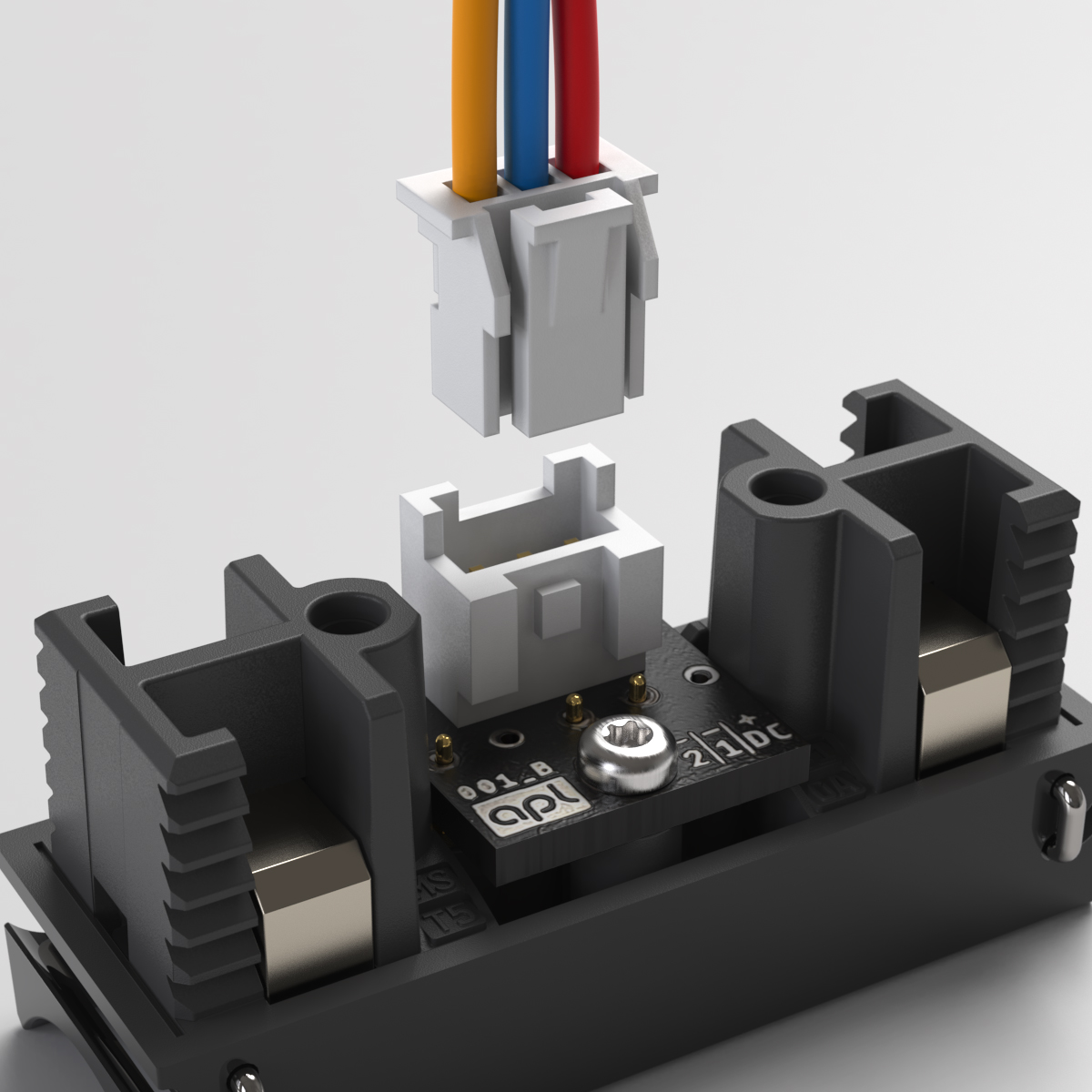

To operate the LTwo®, the “LTwo® magnetic lampholder” is required. You can choose the PIT block variant for connecting the lampholder to the ballast with its own cable. Alternatively, the JST variant offers a plug-in solution. To connect this variant to the ballast, the 3-pole cable set with JST is needed. If you prefer a more streamlined approach, opt for a pre-wired ballast with the cable set permanently attached.

A wide selection of accessories is available for mounting the lampholder, allowing for easy integration into various materials or building systems. Please refer to our accessories catalog to explore how these options can help realize your custom lighting project.

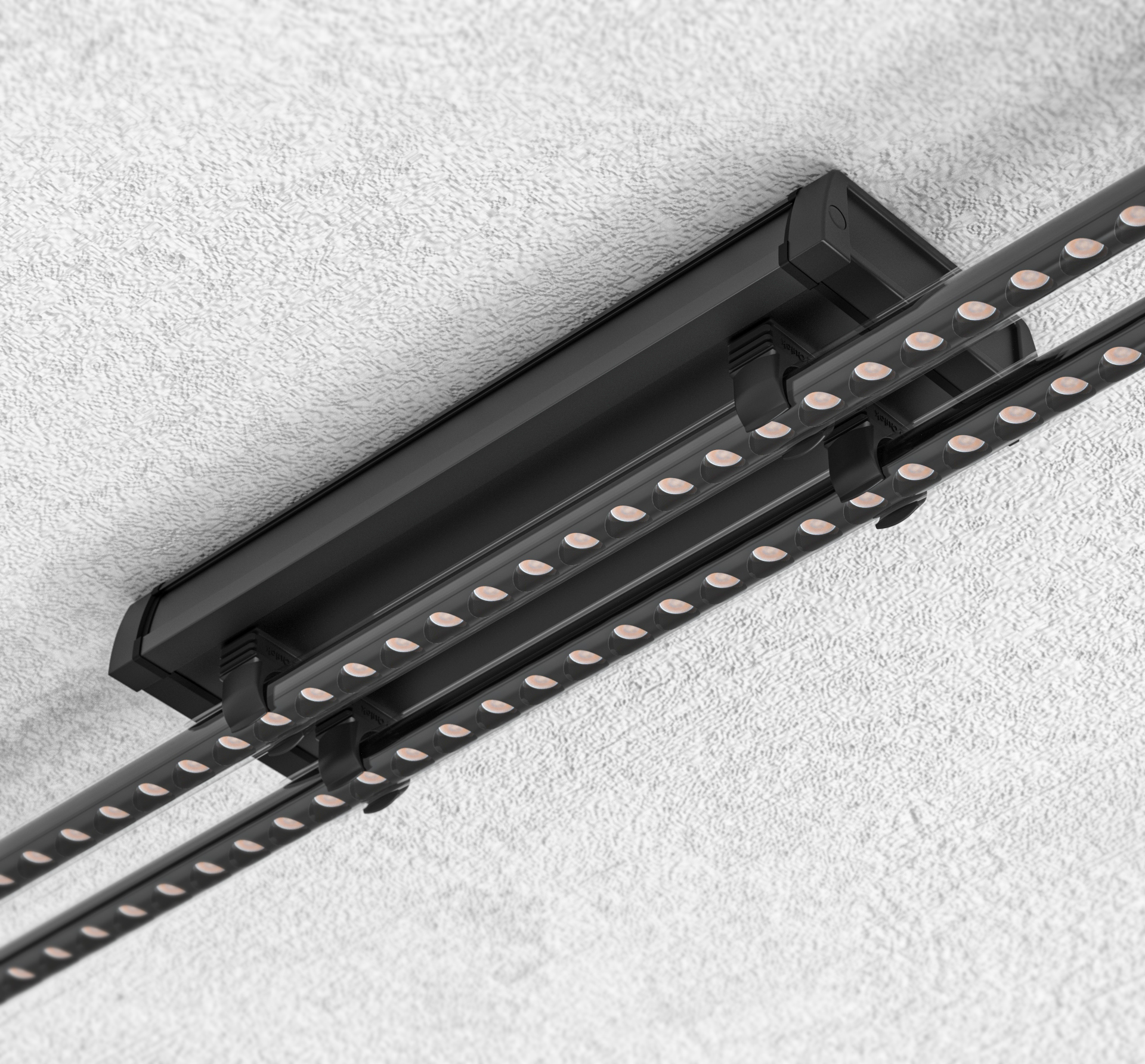

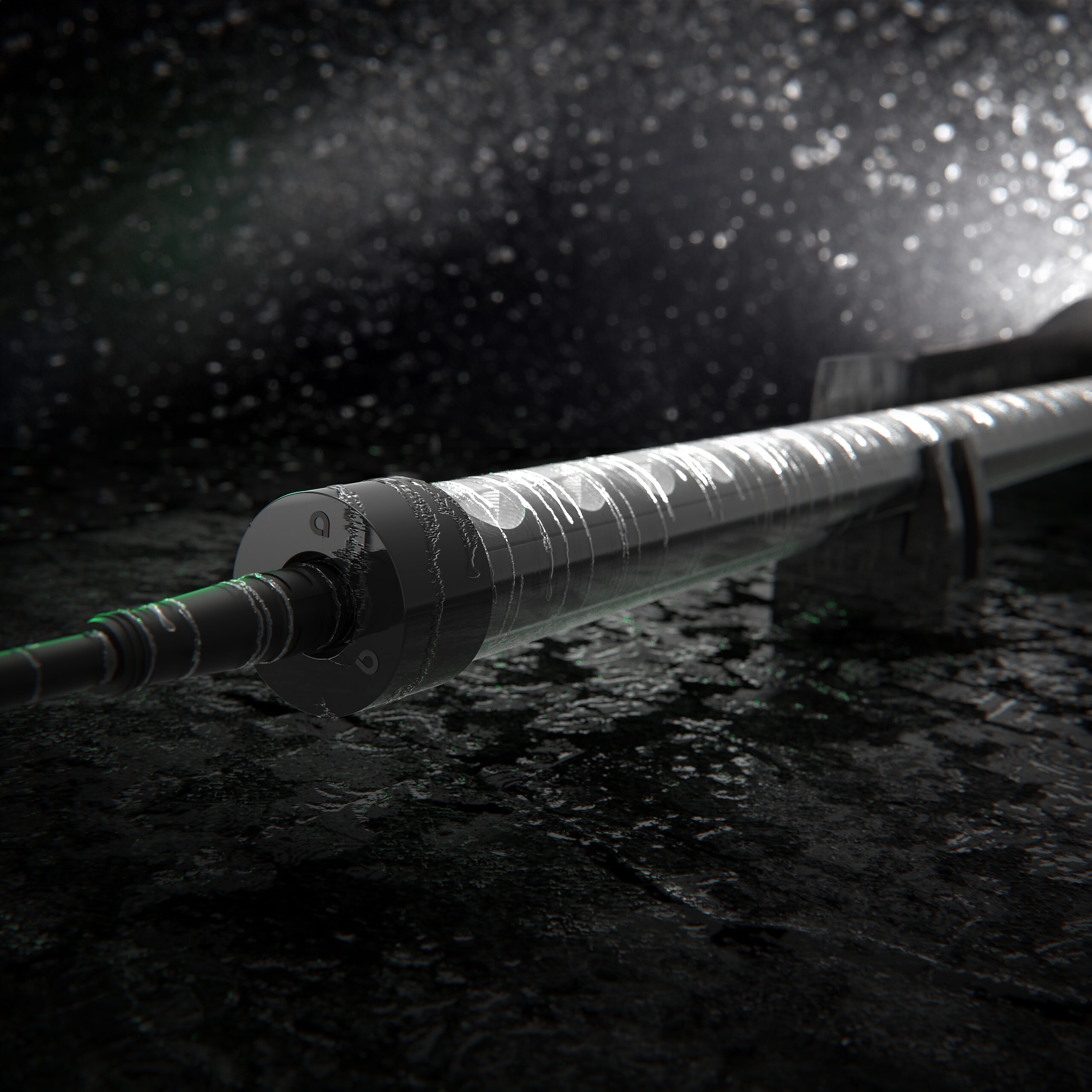

 LTwo® OUTDOOR – Light Tube with Optics, IP67 for Outdoor Use

The LTwo® OUTDOOR is based on the modular, miniaturized LTwo® light source/luminaire system, featuring 12 high-quality precision optics and a wide range of accessories for all lighting applications, delivering up to 5,800 lumens. It offers simple and cost-effective installation using standard materials. The fixture is rotatable 360°, allowing for ideal alignment and maximum flexibility.

With its IP67-rated snap connector, installation is quick and tool-free. The system is highly environmentally friendly, with minimal material usage (250 g/m), interchangeability, recyclability, and high efficiency (up to 178 lm/W). The LTwo® OUTDOOR is perfectly suited for high-quality architectural lighting in outdoor spaces.

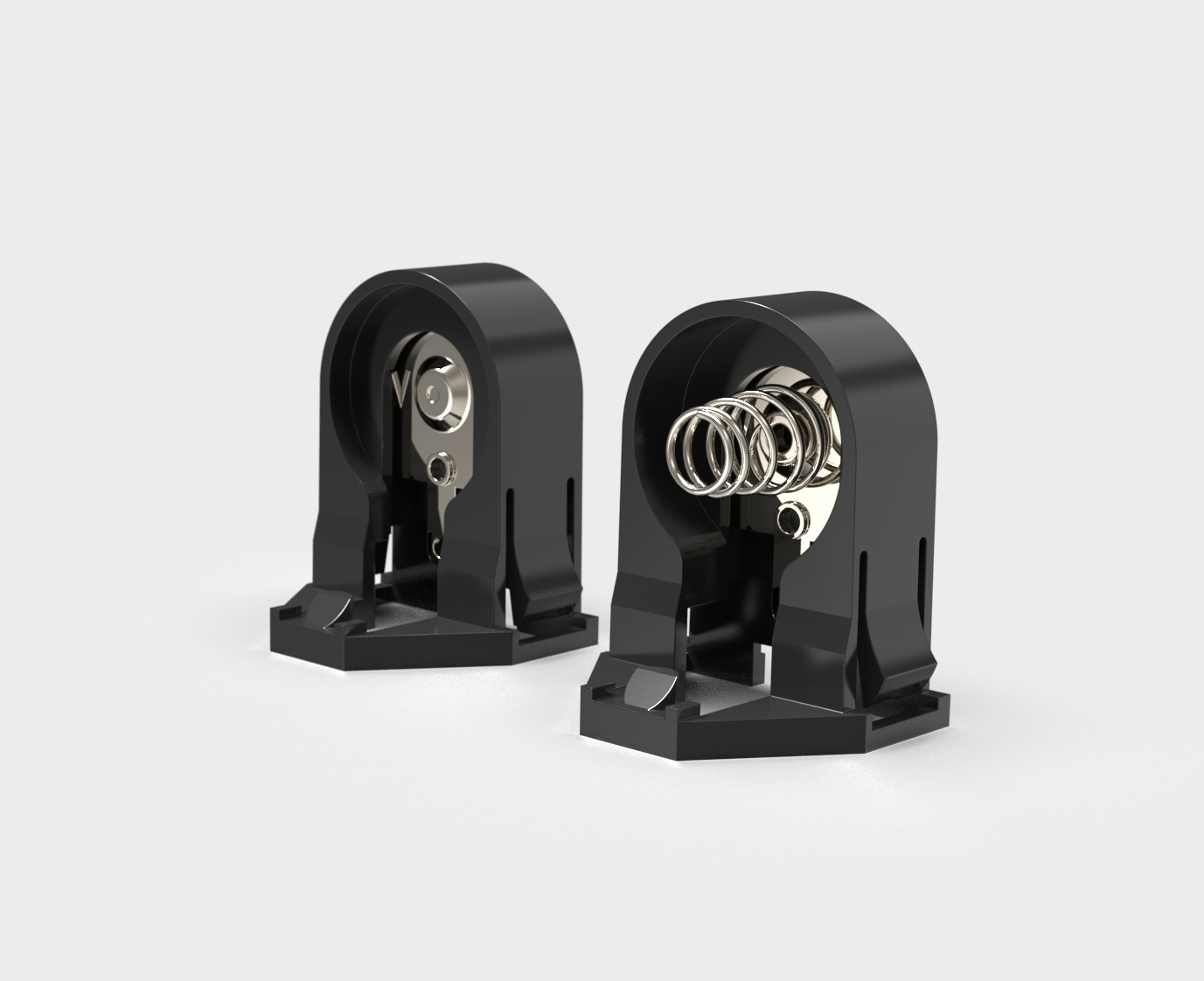

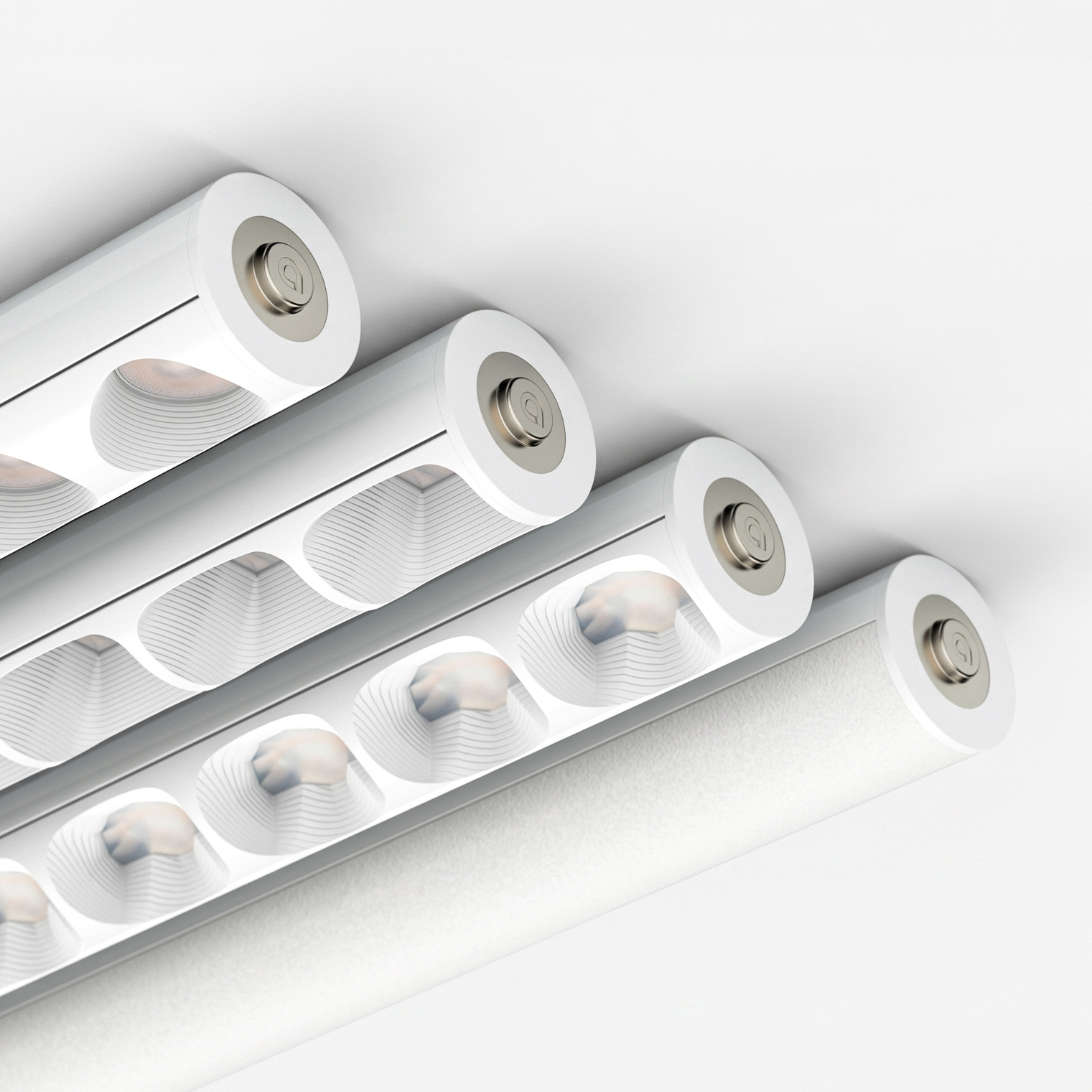

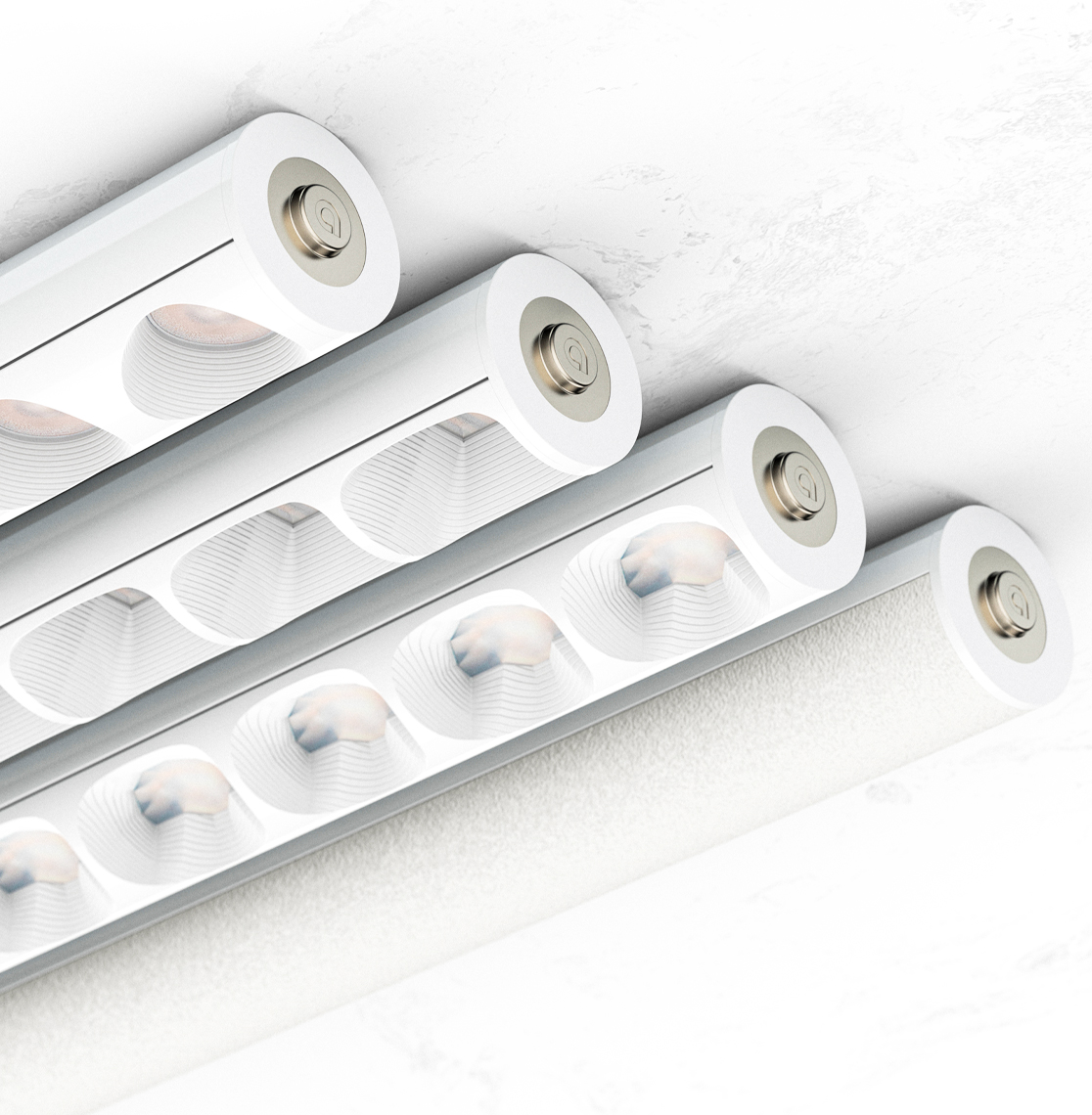

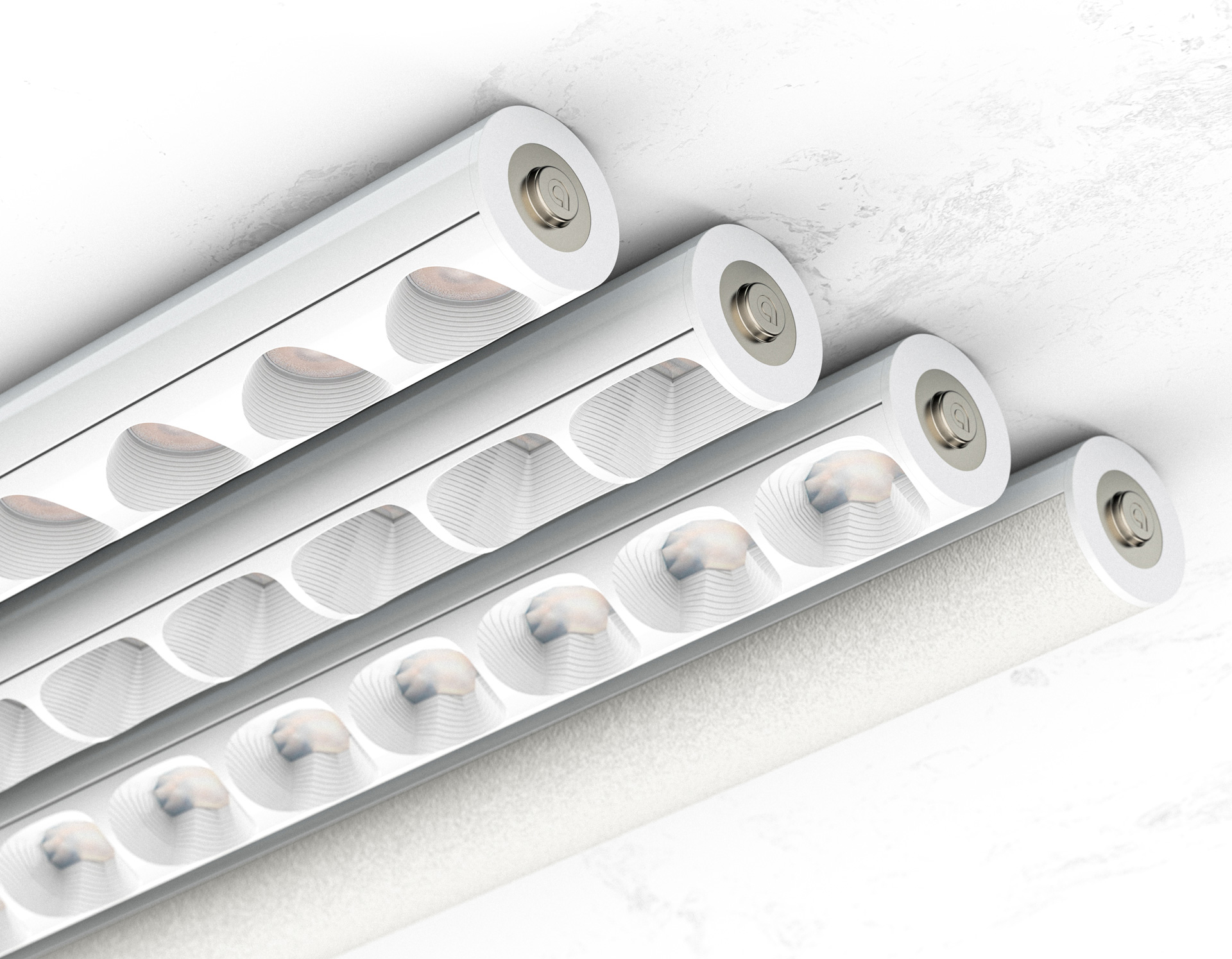

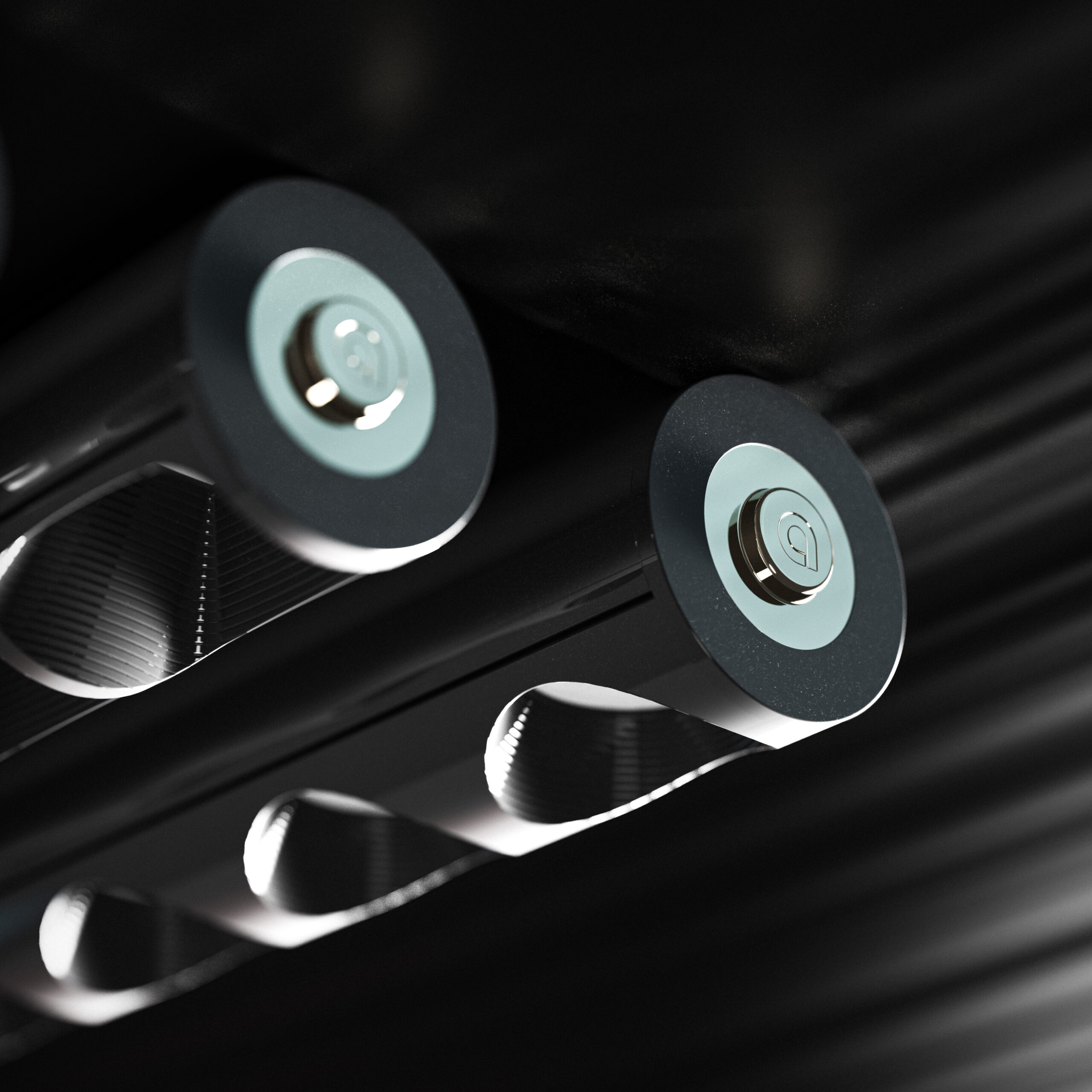

LTwo® BATTERY – Light Tube with Optics and Battery Contacts

The LTwo® BATTERY is part of the modular, compact LTwo® light source/luminaire system, featuring 12 high-quality precision optics and a broad range of accessories for diverse lighting applications, delivering up to 4,700 lumens. Its electrical connection is made at both ends using affordable, commercially available battery connectors, allowing for tool-free replacement of the LTwo® BATTERY.

The system is rotatable 360°, providing ideal alignment and maximum flexibility. Environmentally friendly, it boasts minimal material usage (181 g/m), high interchangeability, recyclability, and efficiency (up to 193 lm/W).

The LTwo® BATTERY is perfectly suited for innovative, cost-effective luminaire designs, offering unique functionalities and the potential for iconic, never-before-seen designs.

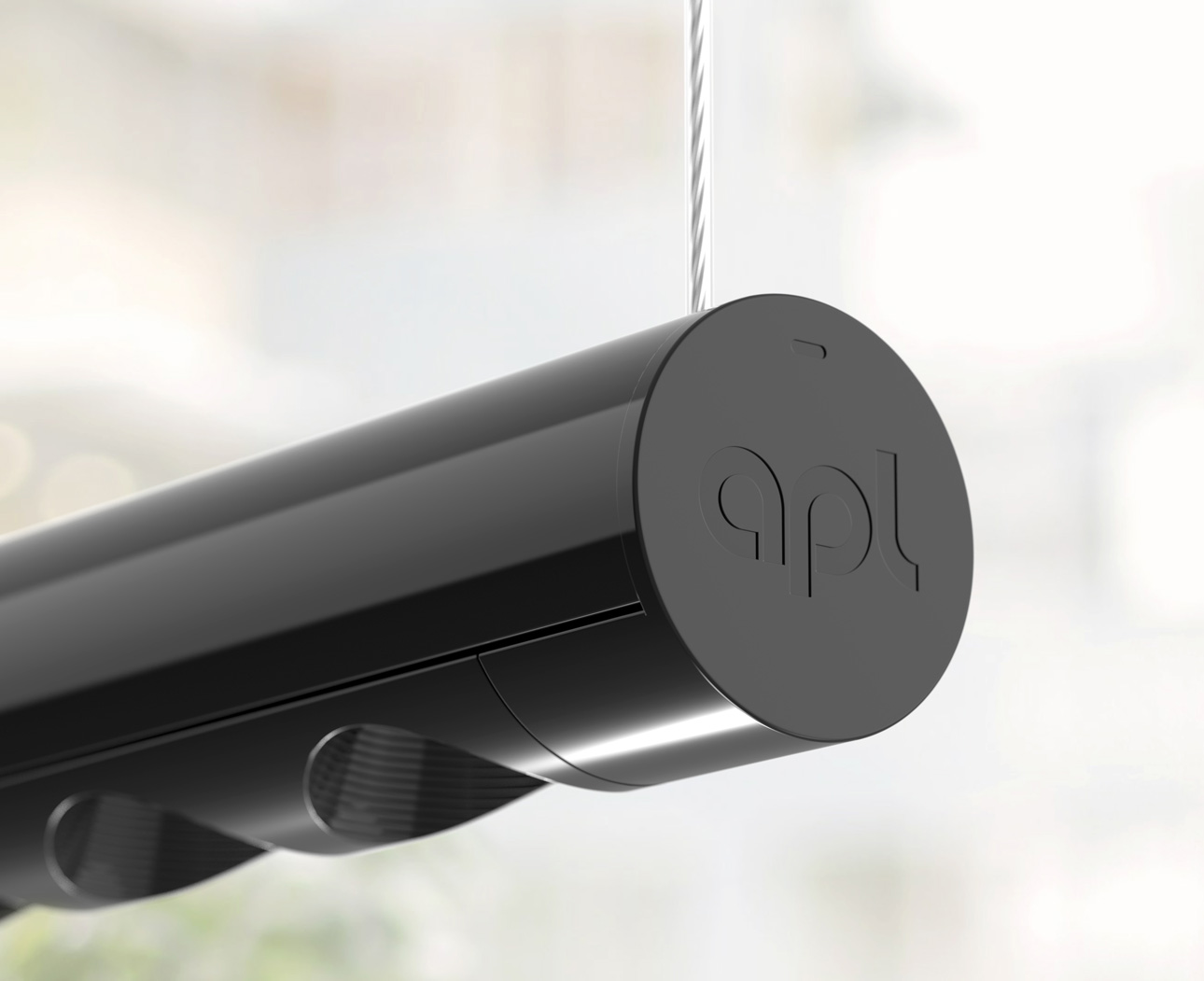

LTwo® PENDANT – Light Tube with Optics as a Pendant Luminaire

The LTwo® PENDANT is built on the modular, compact LTwo® light source/luminaire system, featuring 12 high-quality precision optics and a wide array of accessories for all lighting applications, delivering up to 6,400 lumens.

Designed for easy installation, the LTwo® PENDANT features decorative wire ropes for both suspension and power supply, eliminating the need for additional power cables. The ceiling-mounted wire rope holders allow for simple, tool-free height adjustments, ensuring perfect alignment of the luminaire.

With minimal material use (230 g/m), high efficiency (up to 193 lm/W), and a focus on interchangeability and recyclability, the LTwo® PENDANT is an environmentally friendly solution. It’s ideal for high-quality architectural lighting in indoor spaces.

LTwo® ACCESSORIES – Versatile Accessories for All LTwo® Versions

A wide range of accessories is available for mounting LTwo® units, designed to work seamlessly with their individual lampholder/connector system. For detailed options, please refer to our accessories catalog or the specific LTwo® datasheet. These accessories are optimized to help you bring your lighting project to life, easily integrate LTwo® into various materials or building structures, and support the creation of innovative fixture designs. With the LTwo® lamp and accessory portfolio, we empower you to craft high-end architectural lighting fixtures that reflect your unique creativity and design vision.

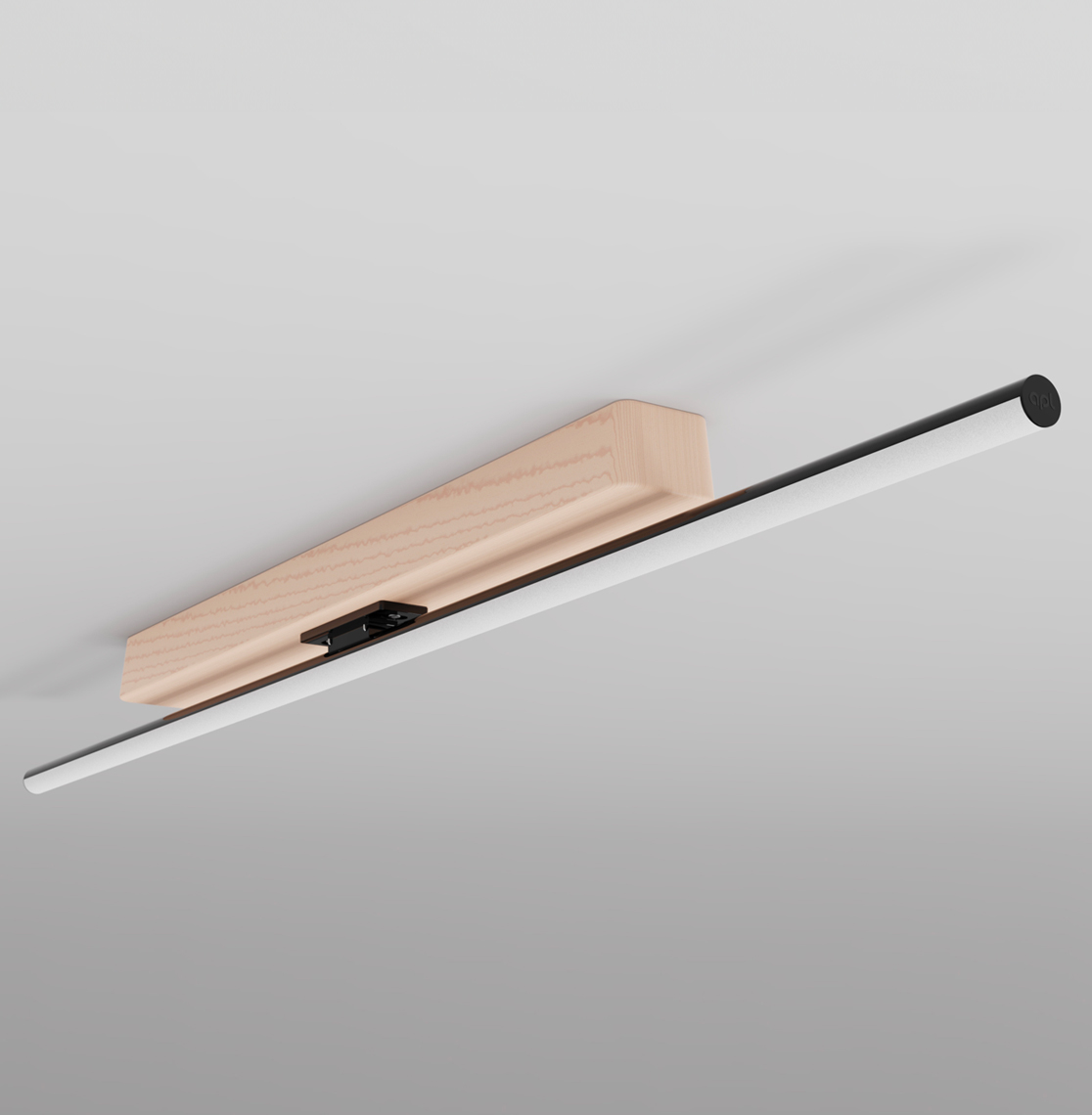

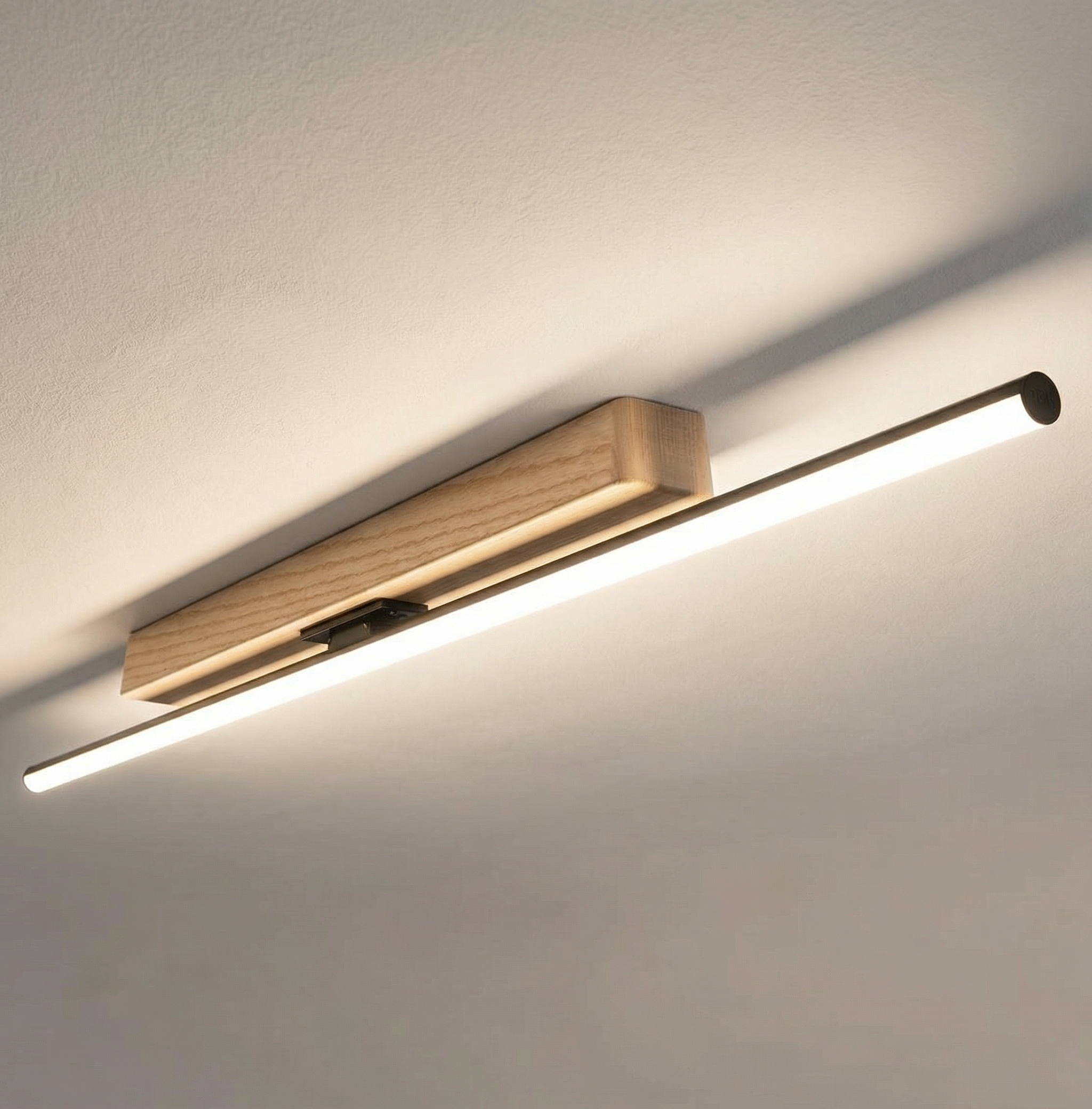

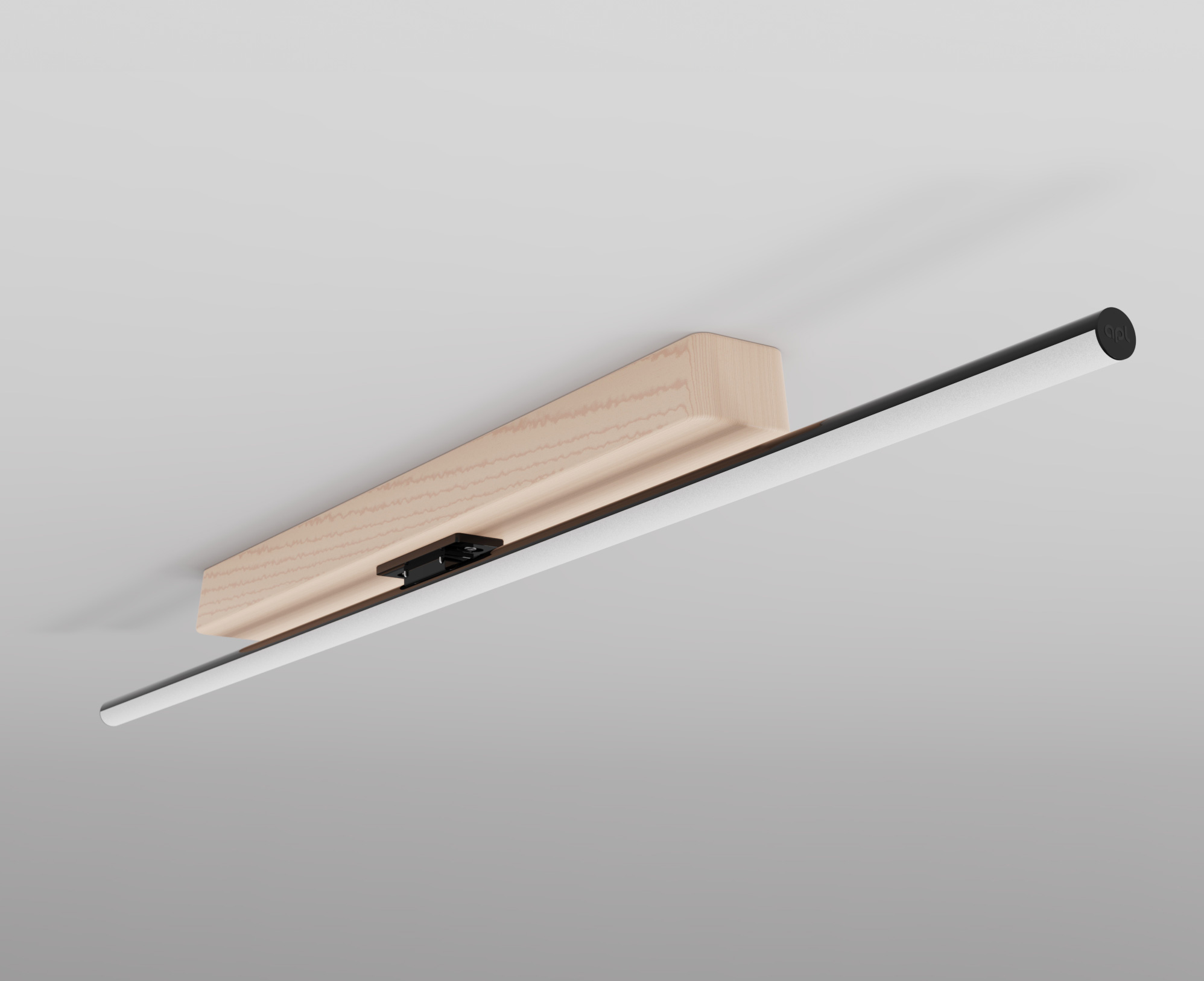

This product combines natural beauty and functionality in a modern design. This stylish wooden canopy creates a warm, inviting atmosphere and is perfect for indoor areas. With its high-quality workmanship and sustainable materials, the “Wooden Canopy” ensures harmonious integration into any room concept. It lends an elegant and natural touch at the same time, making it an architectural highlight in any room.

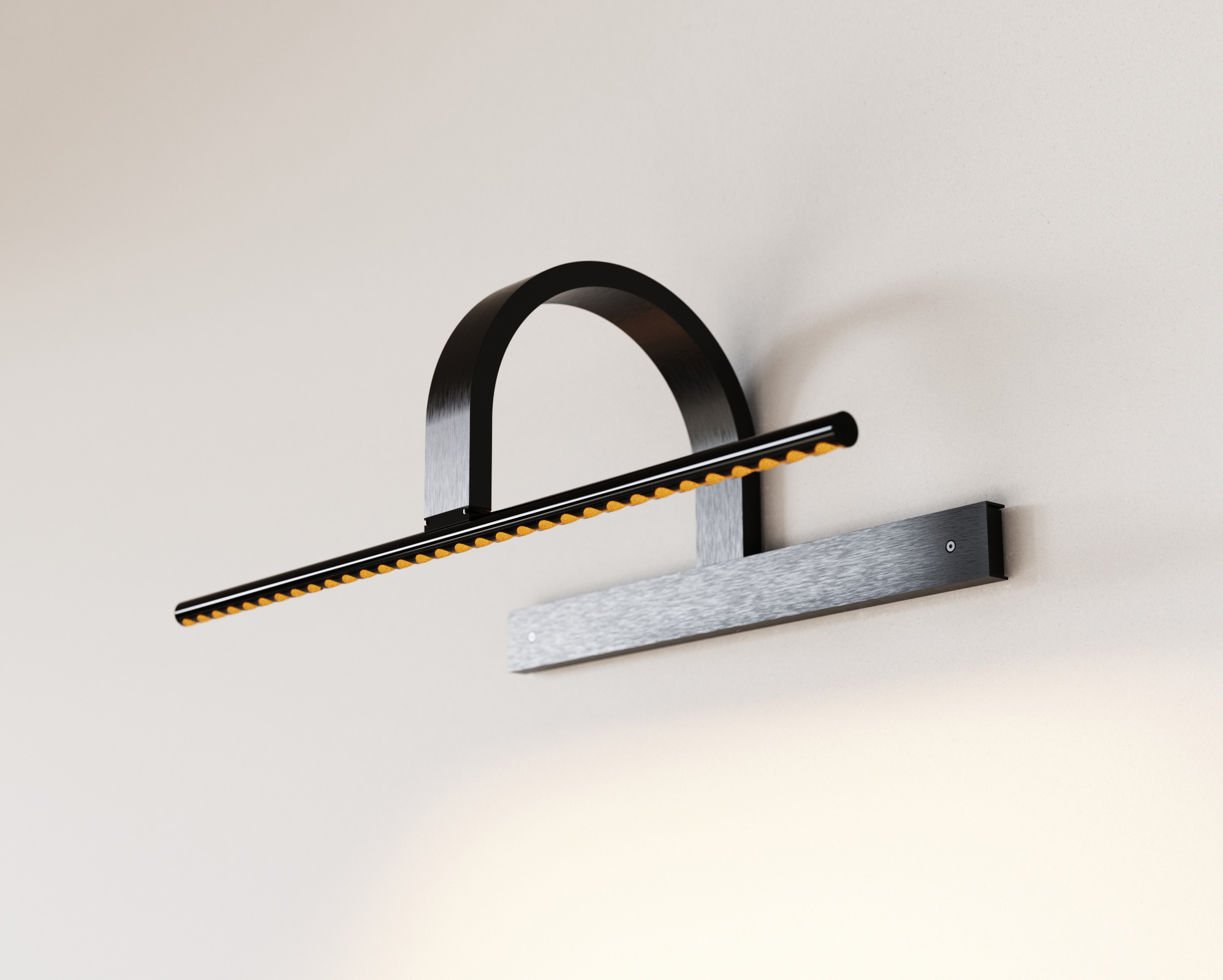

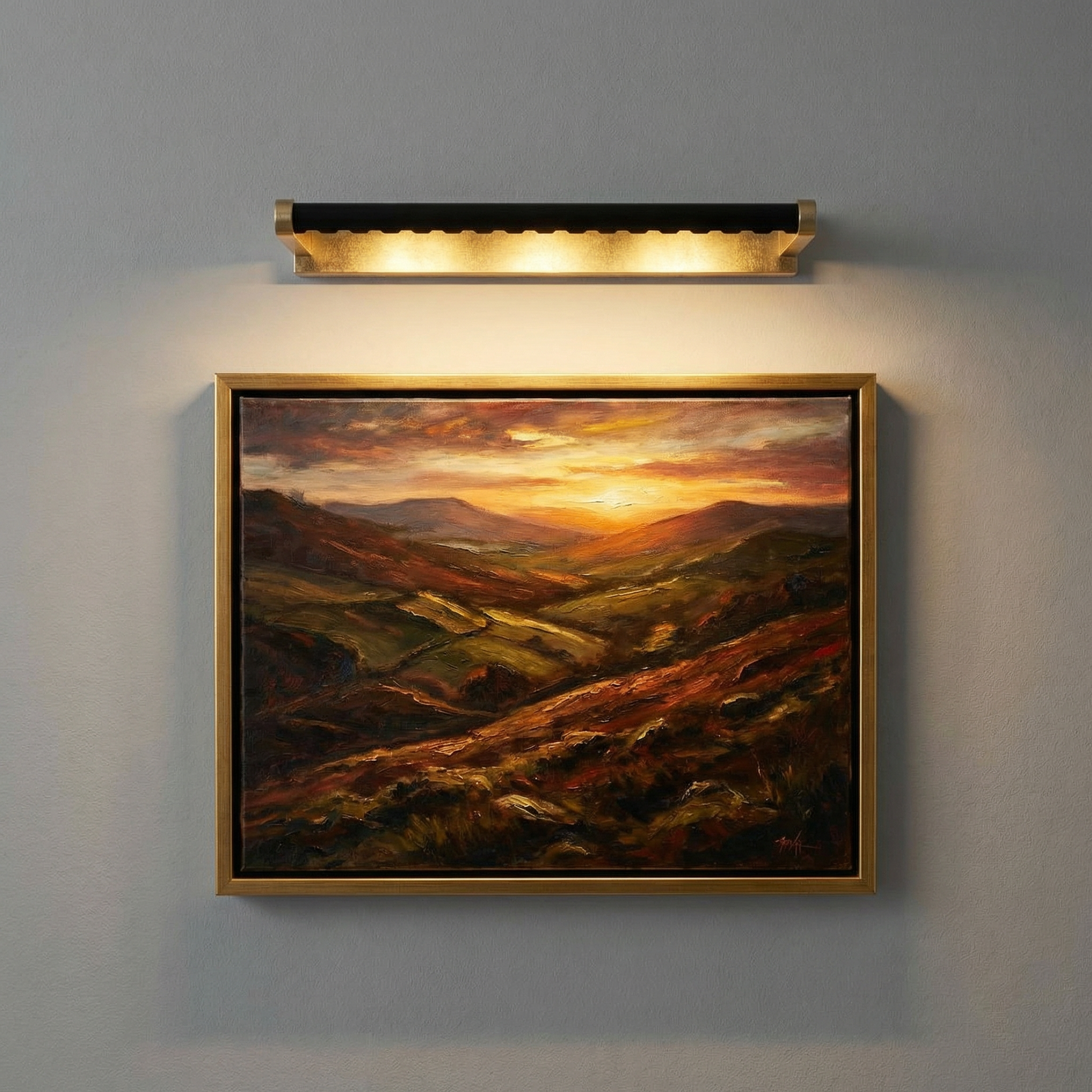

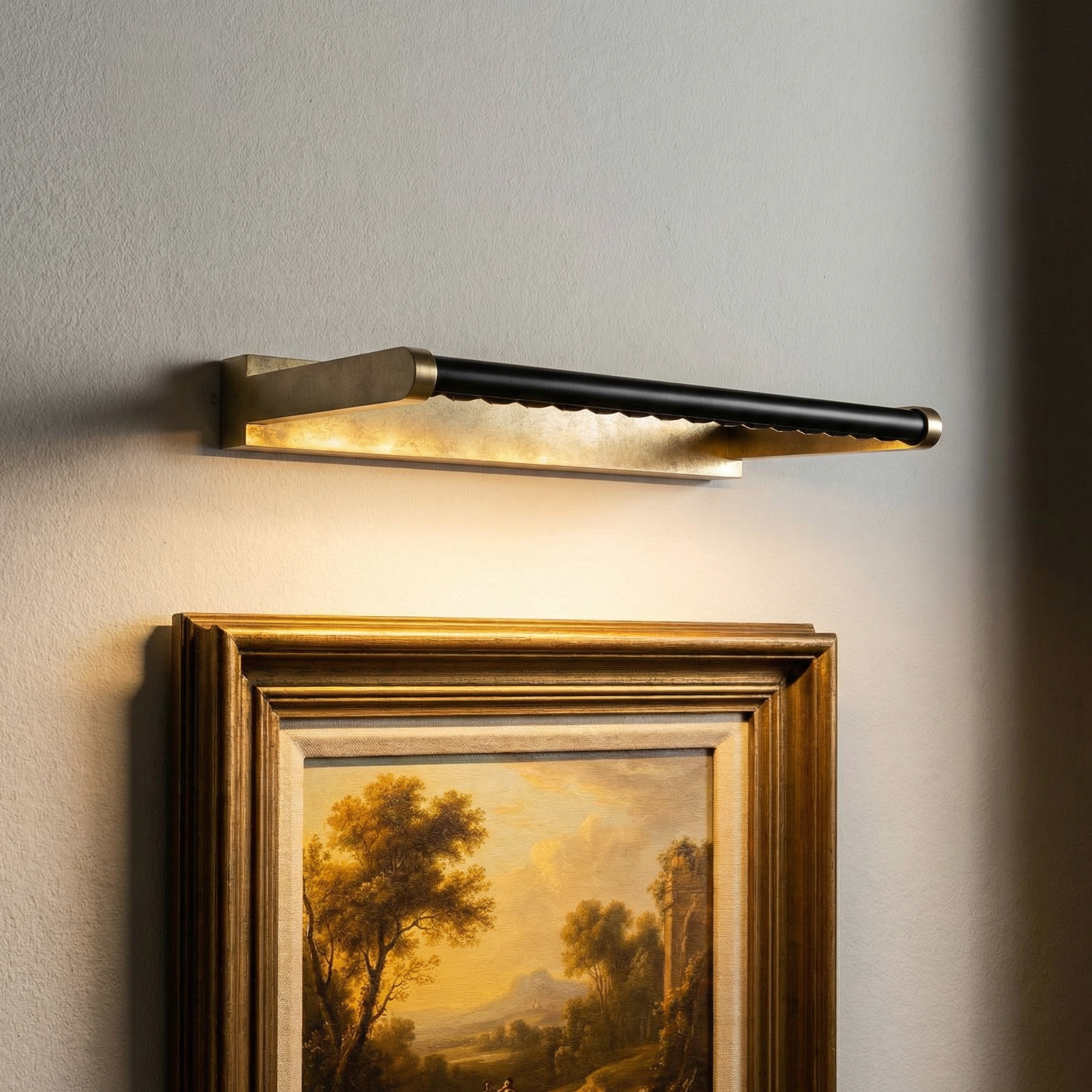

An elegant and powerful lighting solution for artworks, photos and pictures. With its modern LED technology, it provides even, glare-free illumination and perfectly highlights the colors and details of your artwork. The slim design and simple installation make it ideal for a variety of rooms, whether at home or in galleries. Thanks to the dimming function, the light intensity can be flexibly adjusted to suit the atmosphere.

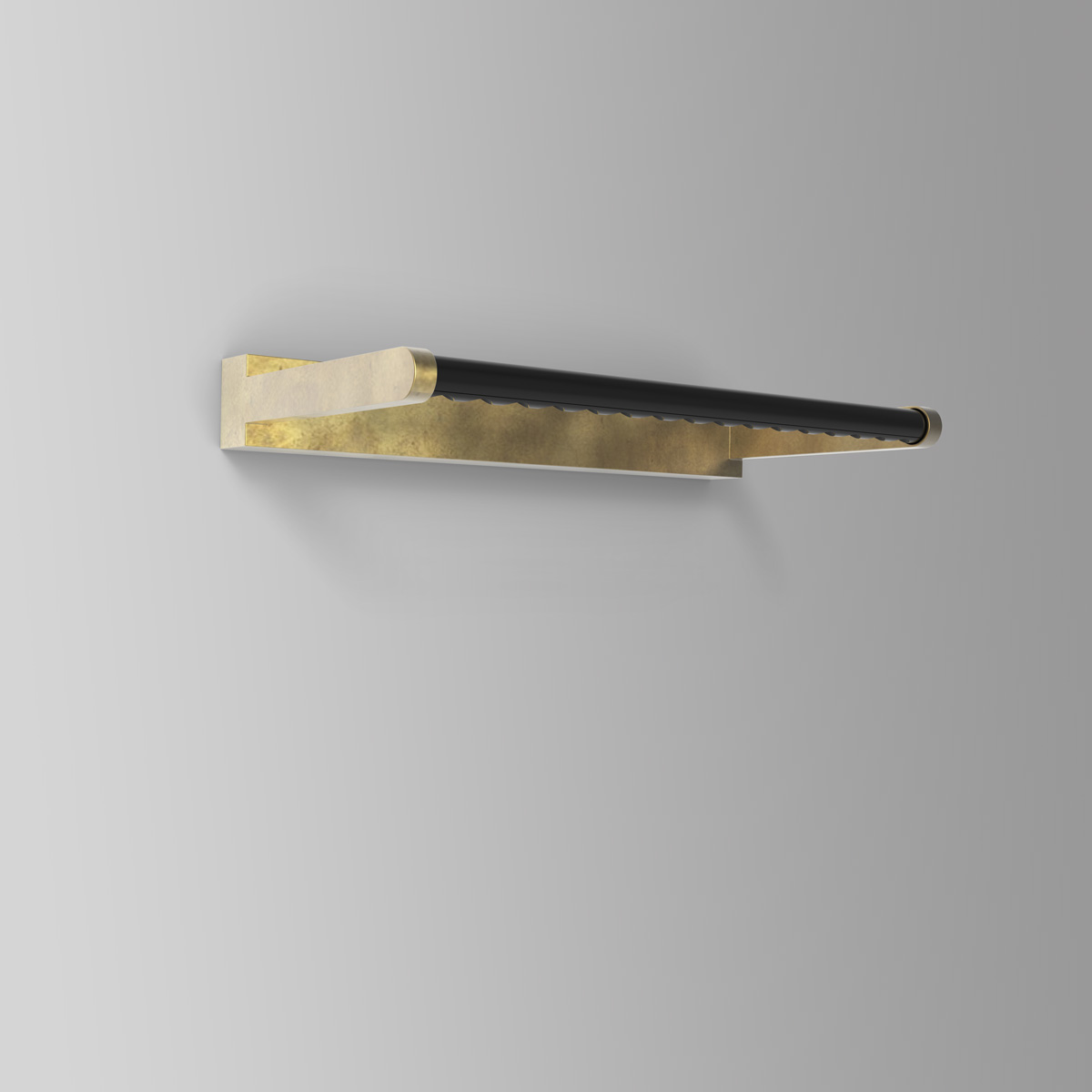

The “LTwo® BC – Spotlight” offers precise and powerful lighting for targeted accentuation. With its flexible alignment and energy-efficient LED technology, it highlights objects, works of art or special details. The slim design blends seamlessly into any environment, while the dimmable function allows the light intensity to be individually adjusted. Ideal for galleries, exhibitions or modern living spaces, the “LTwo® BC – Spotlight” provides a perfect lighting solution with high flexibility and a stylish appearance.

With the right accessories, you can customize your own luminaire and create a lighting solution that perfectly suits your room and your needs. The accessories make it possible to combine different components and personalize the design and functionality of your luminaire. Whether in the form of different suspensions, color filters or special mounting systems – with the versatile options, creative and tailor-made lighting solutions can be implemented. This means you can not only customize the lighting, but also create a unique atmosphere.

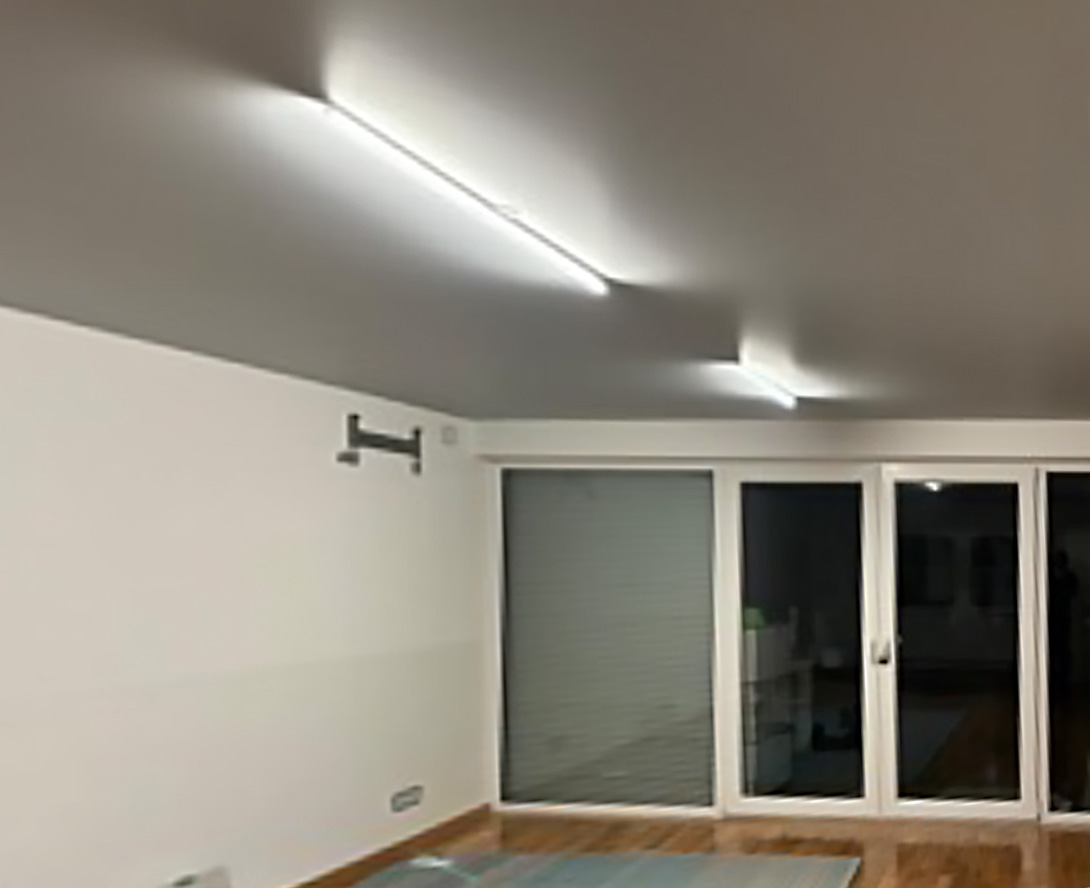

A combination of modern design and high functionality. The glossy, lacquered surface lends any room an elegant, reflective appearance and ensures even light distribution. The innovative stretch system enables easy installation and perfect adjustment to any room size. Ideal for modern interiors, it offers not only aesthetic beauty, but also a durable and low-maintenance solution for your ceiling lighting.

With the right accessories, you can customize your own luminaire and create a lighting solution that perfectly suits your room and your needs. The accessories make it possible to combine different components and personalize the design and functionality of your luminaire. Whether in the form of different suspensions, color filters or special mounting systems – with the versatile options, creative and tailor-made lighting solutions can be implemented. This means you can not only customize the lighting, but also create a unique atmosphere.

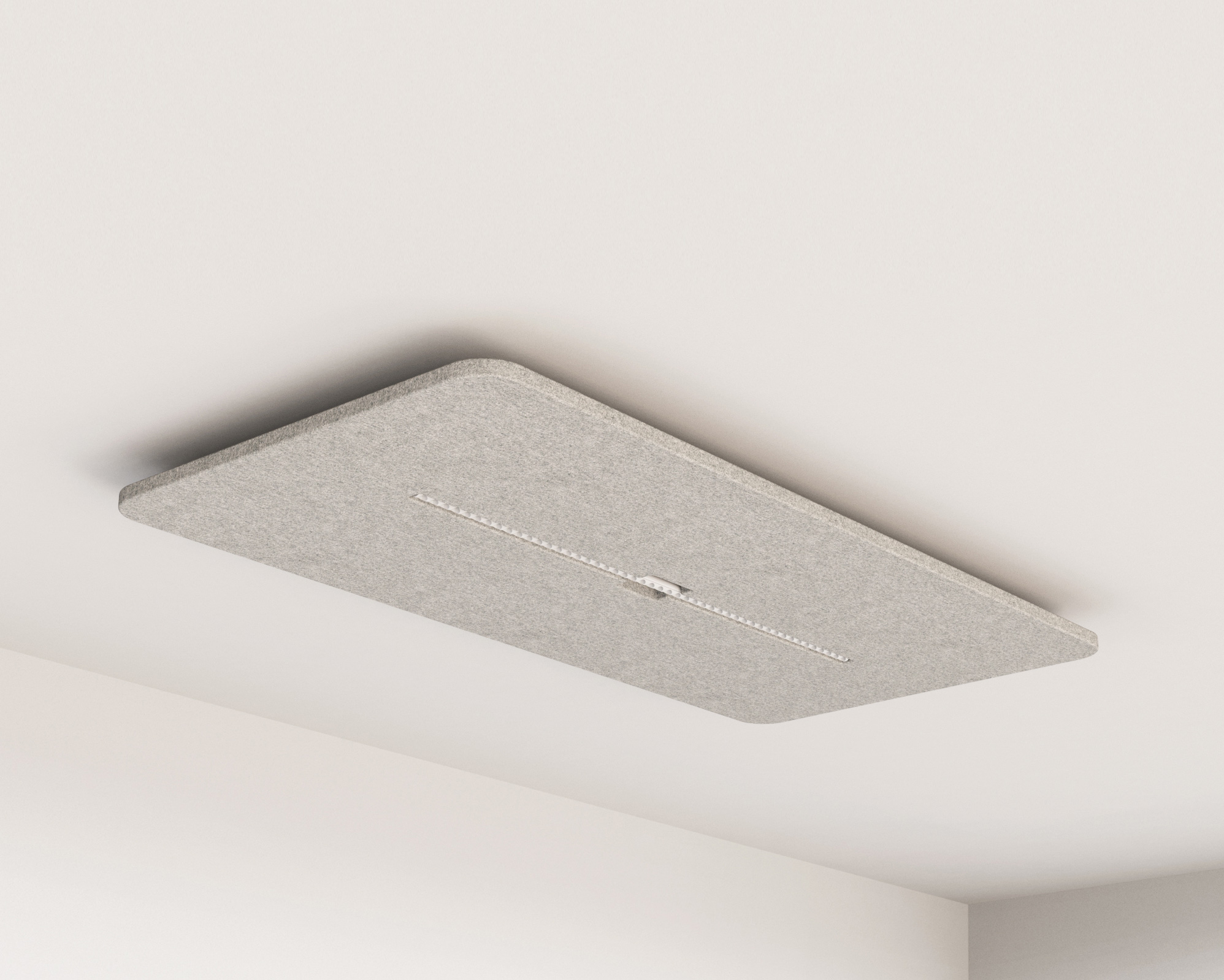

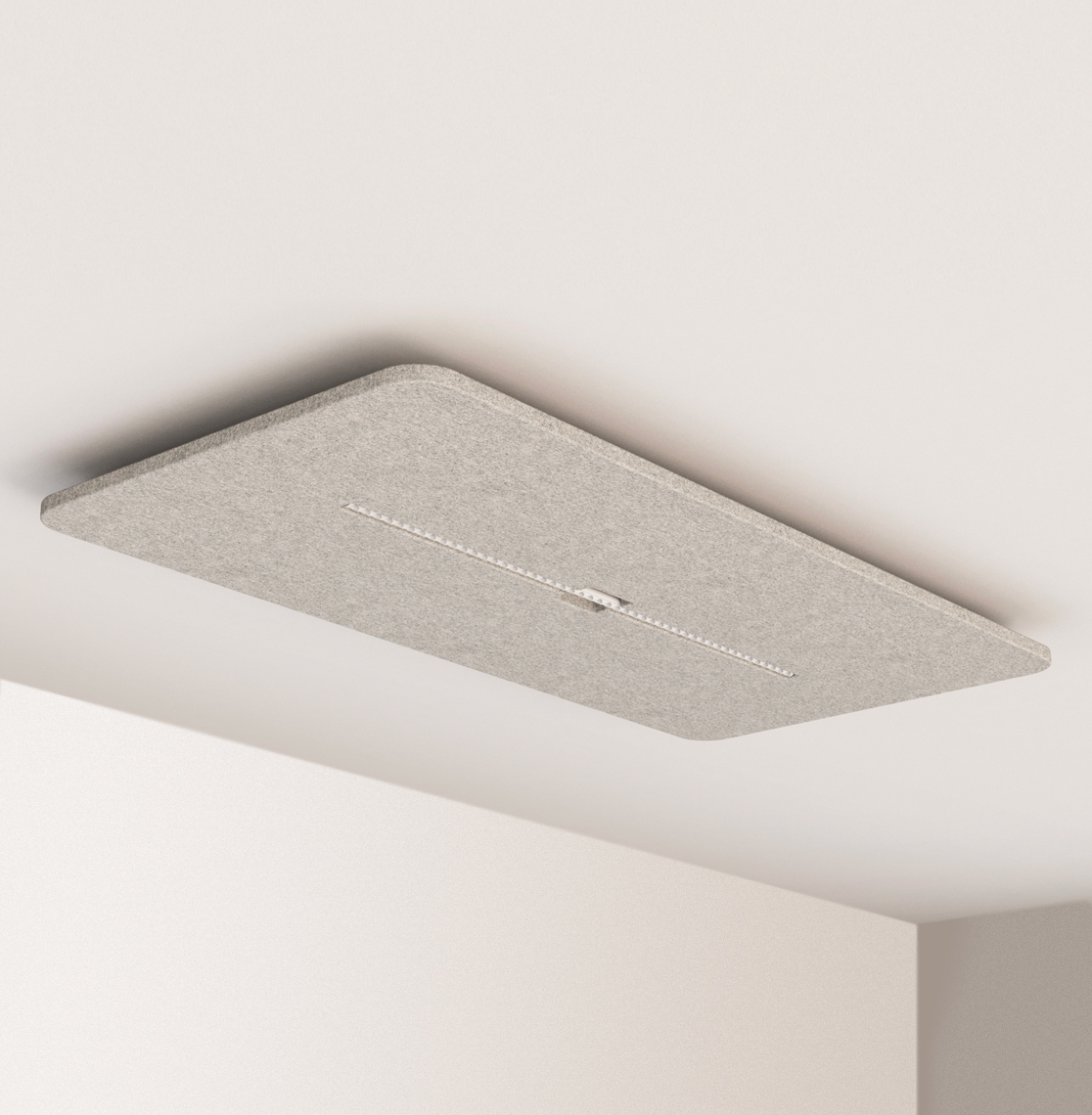

This product combines stylish design with innovative acoustic technology. The integrated acoustic panels provide excellent sound absorption and help create a calm, pleasant atmosphere. At the same time, the elegant ceiling panel provides uniform, efficient lighting. Ideal for offices, conference rooms, or modern living spaces, the “Lumami® CEILING with Acoustic Panel” not only improves room acoustics but also creates an aesthetically pleasing lighting solution.

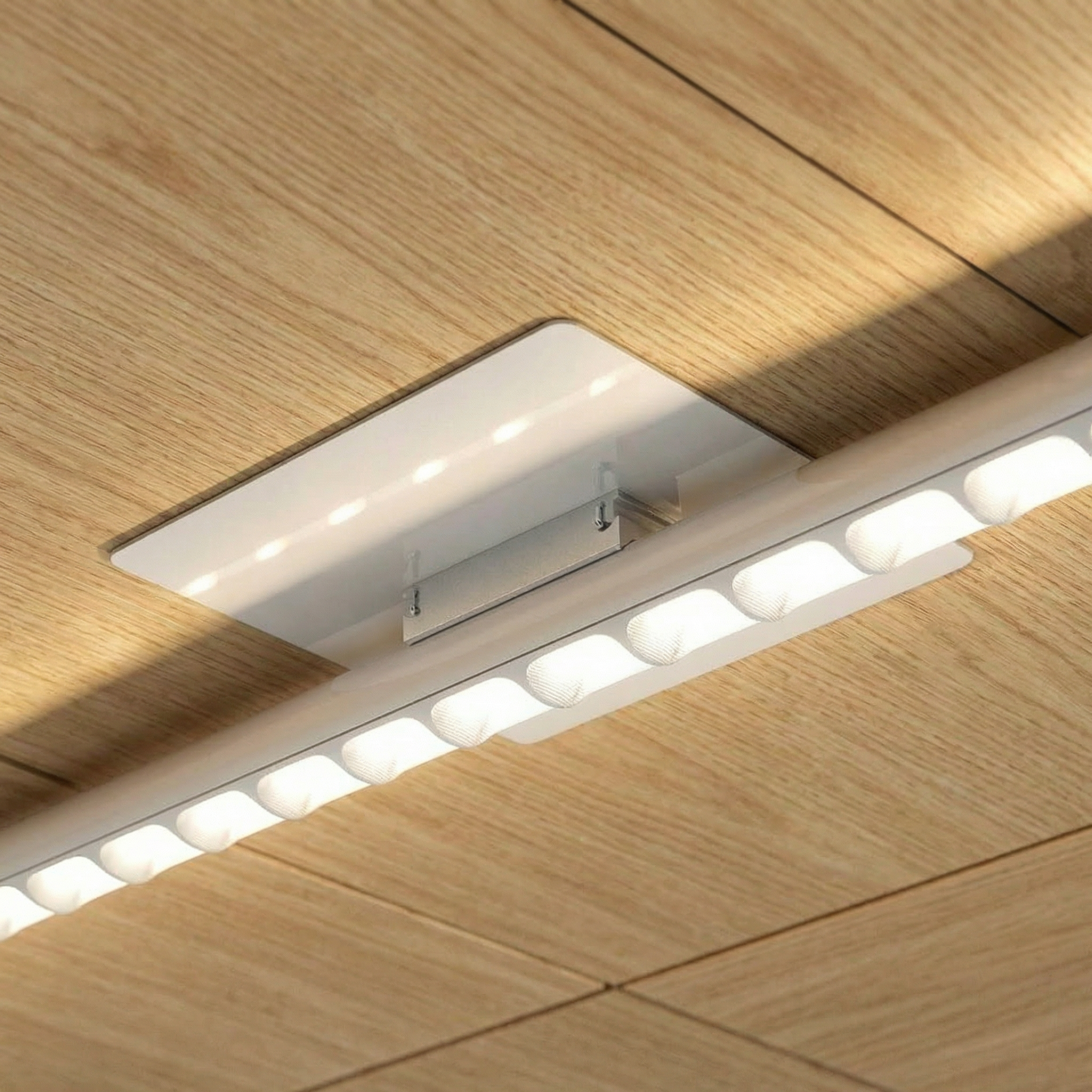

This downlight offers efficient and focused illumination with a sleek, modern design. Its compact size allows for easy integration into various ceiling types, providing a clean, unobtrusive lighting solution. Ideal for both residential and commercial spaces, it delivers bright, uniform light that works well for general or accent lighting. With energy-efficient LED technology, it ensures long-lasting performance while enhancing the overall atmosphere of any room.

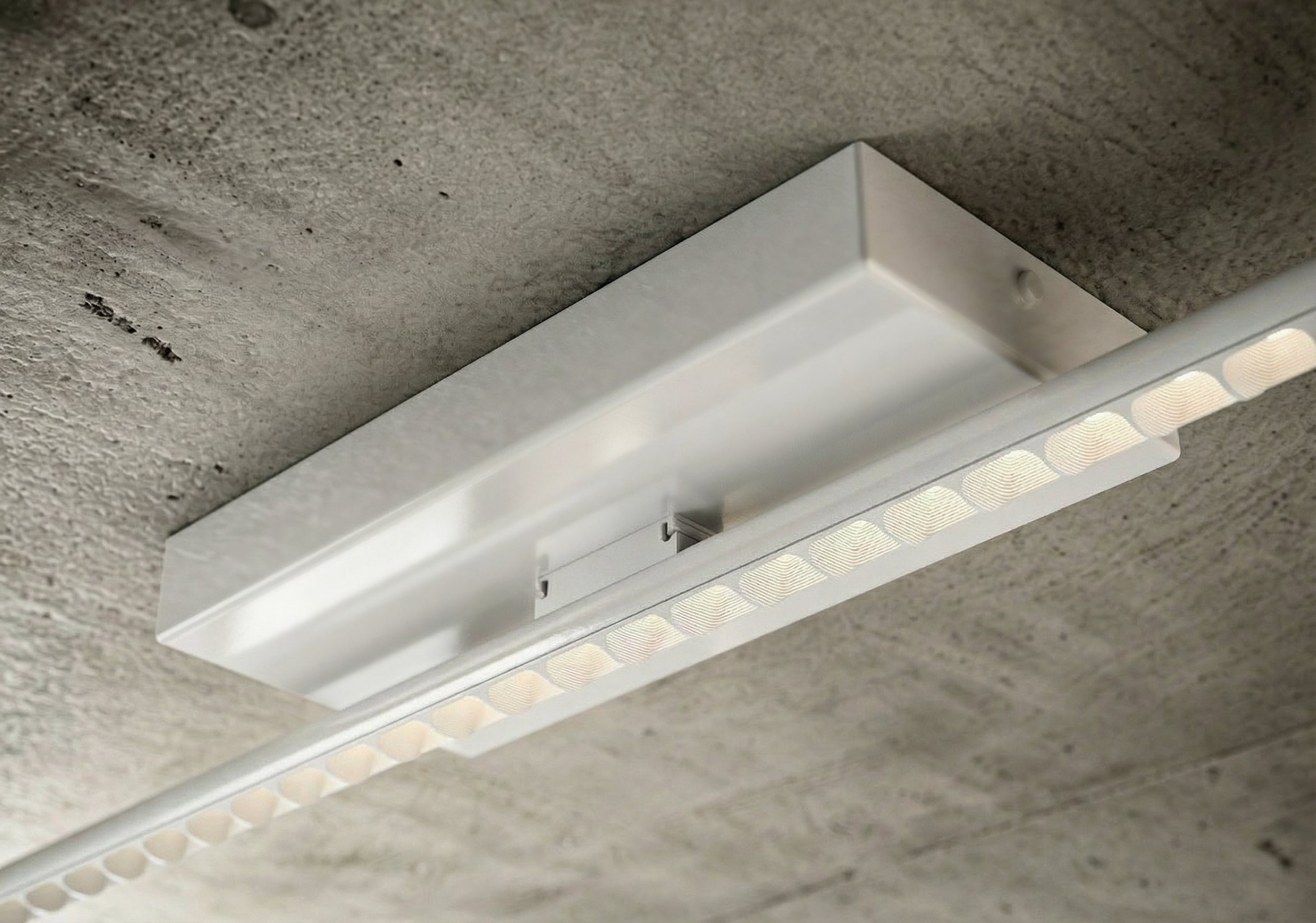

Lumami® CEILING offers an elegant solution for main ceiling applications where access from above is not possible. Equipped with a constant current power supply preset to 600 mA, it’s compatible with all LTwo® MAG units in constant current with a length range of 142 – 1,122 mm. The compact housing (200 x 90 x 24 mm) is available in white (RAL 9016) and black (RAL 9005) to match LTwo® fixtures.

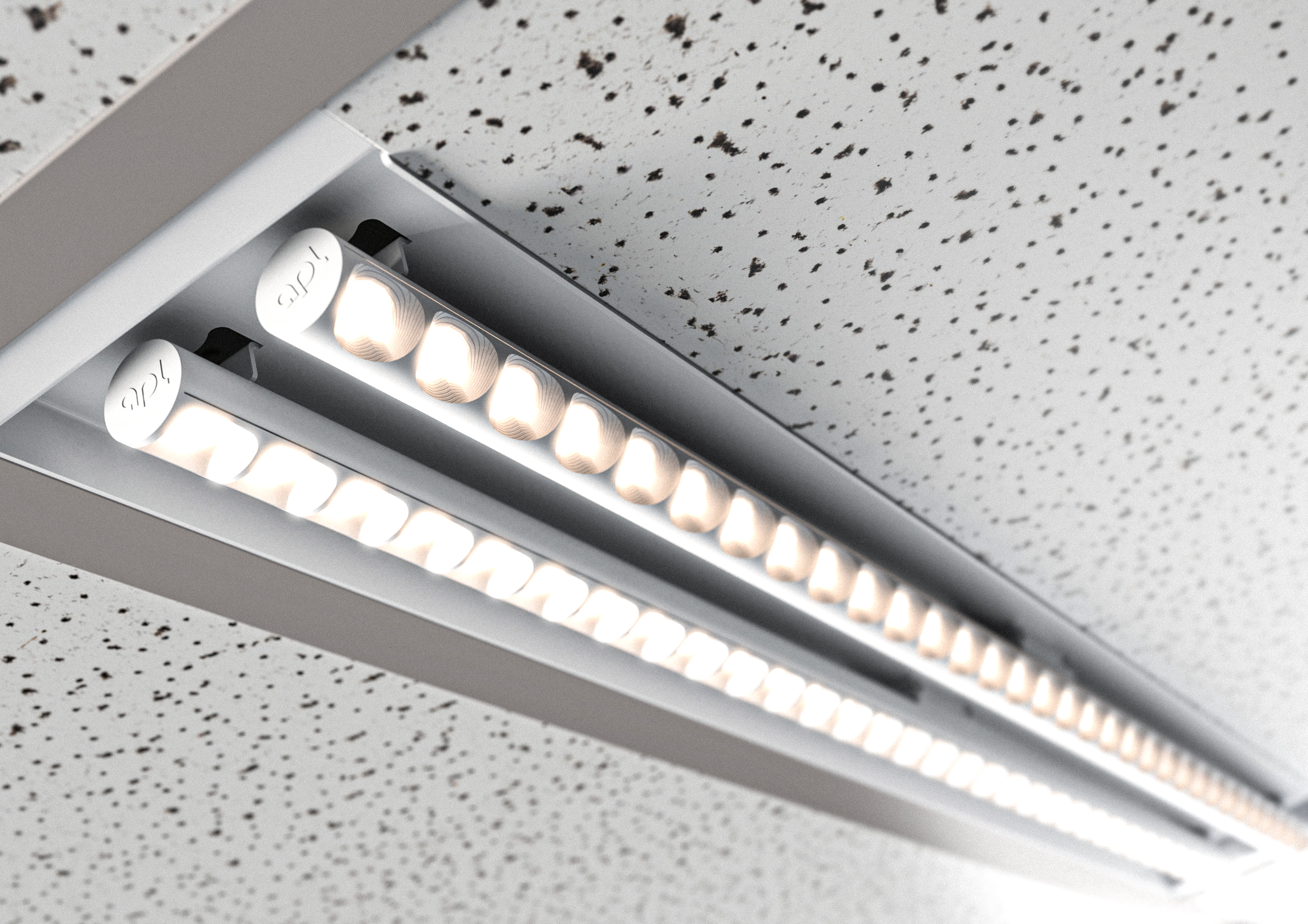

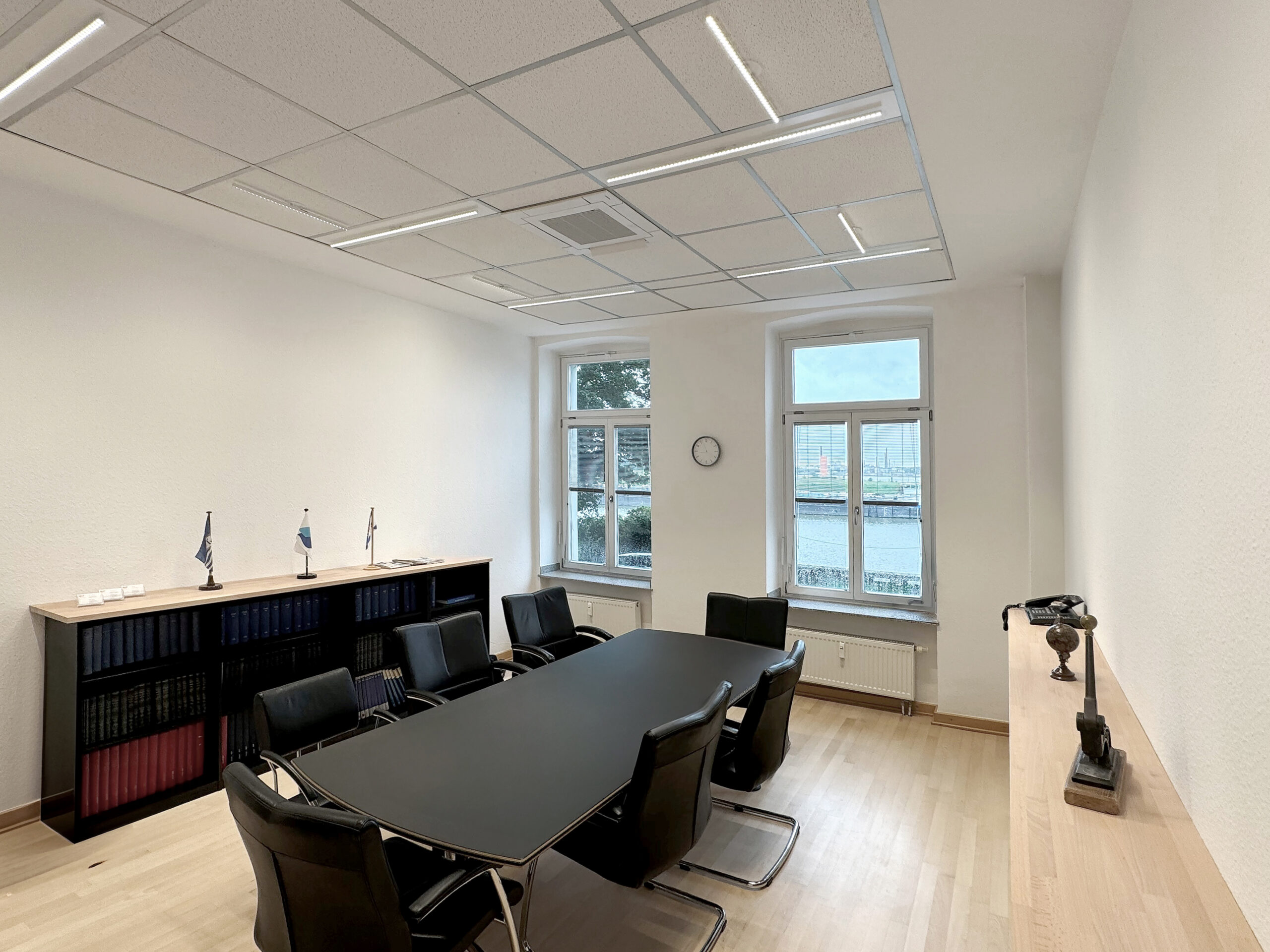

Lumami® PANEL is the perfect addition for office grid ceiling environments. This 80 mm wide ceiling panel fits seamlessly into 625 mm grid ceilings, offering high-quality lighting with 12 precision optics and UGR < 16 for optimal office lighting. Pre-wired with two constant current power supply units preset to 600 mA, it’s compatible with all LTwo® MAG in constant current with a length of 562 mm. Available in white (RAL 9016) and black (RAL 9005) to match LTwo® fixtures, Lumami® PANEL is a hassle-free, high-performance solution for professional workspaces.

Lumami® DESK brings the best features of various lighting systems together for the perfect result. Utilizing the modular, miniaturized LTwo® light source, it offers a multifunctional lampholder for easy, tool-free, magnetic installation and angle adjustment in ±20° steps. The result is uniform, high-quality illumination across the entire workspace, meeting the standards of DIN EN 12464-1. The specially developed apl BWW optic ensures complete, homogeneous illumination with reduced intensity at the center and increased brightness toward the edges, providing glare-free lighting. Ideal for workplace lighting, combining the flexibility of a desk lamp with the performance of larger systems.

Compatible with most commercially available 3-phase track systems, Lumami® HV TRACK works with all LTwo® MAG units in constant current and a length range of 562 – 1,122 mm. This system operates with a maximum of 600 mA and connects directly to standard electrical wiring, simplifying installation and reducing costs. The magnetic, multifunctional lampholder allows easy, tool-free installation and angle adjustment, while 12 high-quality precision optics, including Batwing and Wall Wash optics, make it perfect for retail and gallery lighting.

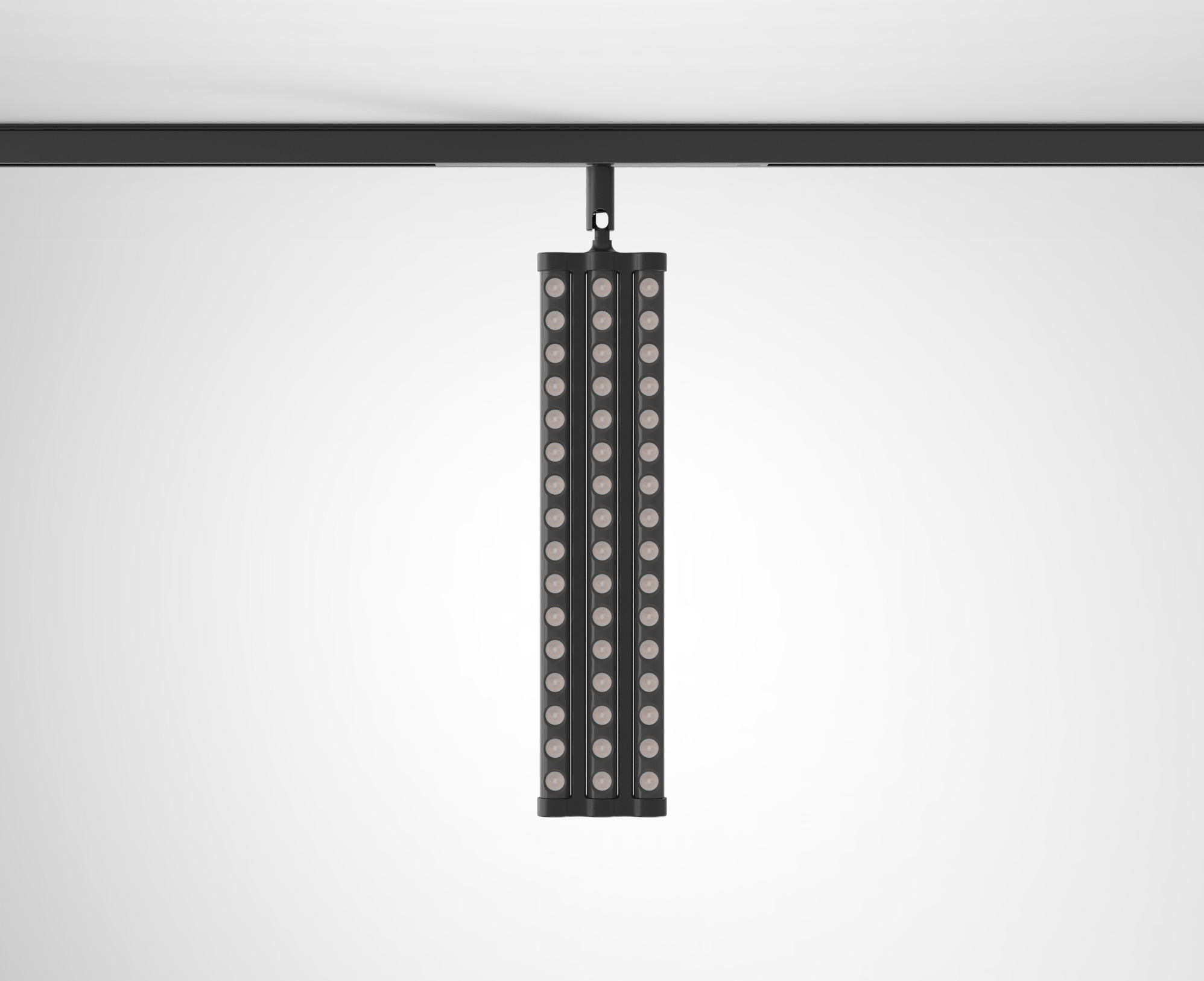

Lumami® LV TRACK provides adjustable lighting for accent, task, or general illumination. It’s ideal for retrofits or DIY projects due to its small, flexible wiring and simple installation. This 48 V track adapter is compatible with the MULTISYSTEM® EVO by A.A.G. Stucchi and all LTwo® MAG units in constant voltage with a length range of 142 – 1,402 mm. Like the HV version, it uses the LTwo® MAG with the magnetic, multifunctional lampholder for easy, tool-free installation and angle adjustment in ±20° steps. The 12 high-quality optics, including Batwing and Wall Wash, make it an excellent choice for gallery and retail lighting.

This outdoor lighting solution is designed to withstand the elements while providing efficient and durable illumination. Its weather-resistant construction ensures long-lasting performance, making it ideal for patios, gardens, or outdoor pathways. The sleek design blends seamlessly with any exterior, offering both functionality and aesthetic appeal. With energy-efficient LED technology, it provides bright, uniform light, enhancing the ambiance of outdoor spaces while minimizing energy consumption. Perfect for creating inviting and well-lit outdoor environments.
