| Use Case: | Lighting Design Inspiration |
| Project Name: | Hotel Lobby |
| LTwo used: | LTwo® MAGNETIC |
| LTwo® PENDANT | |
| Lumami used: | Lumami® LV TRACK |
| Application Area: | Indoor Lighting |
| Detail Application: | Surface mounted luminaires (ceiling) |

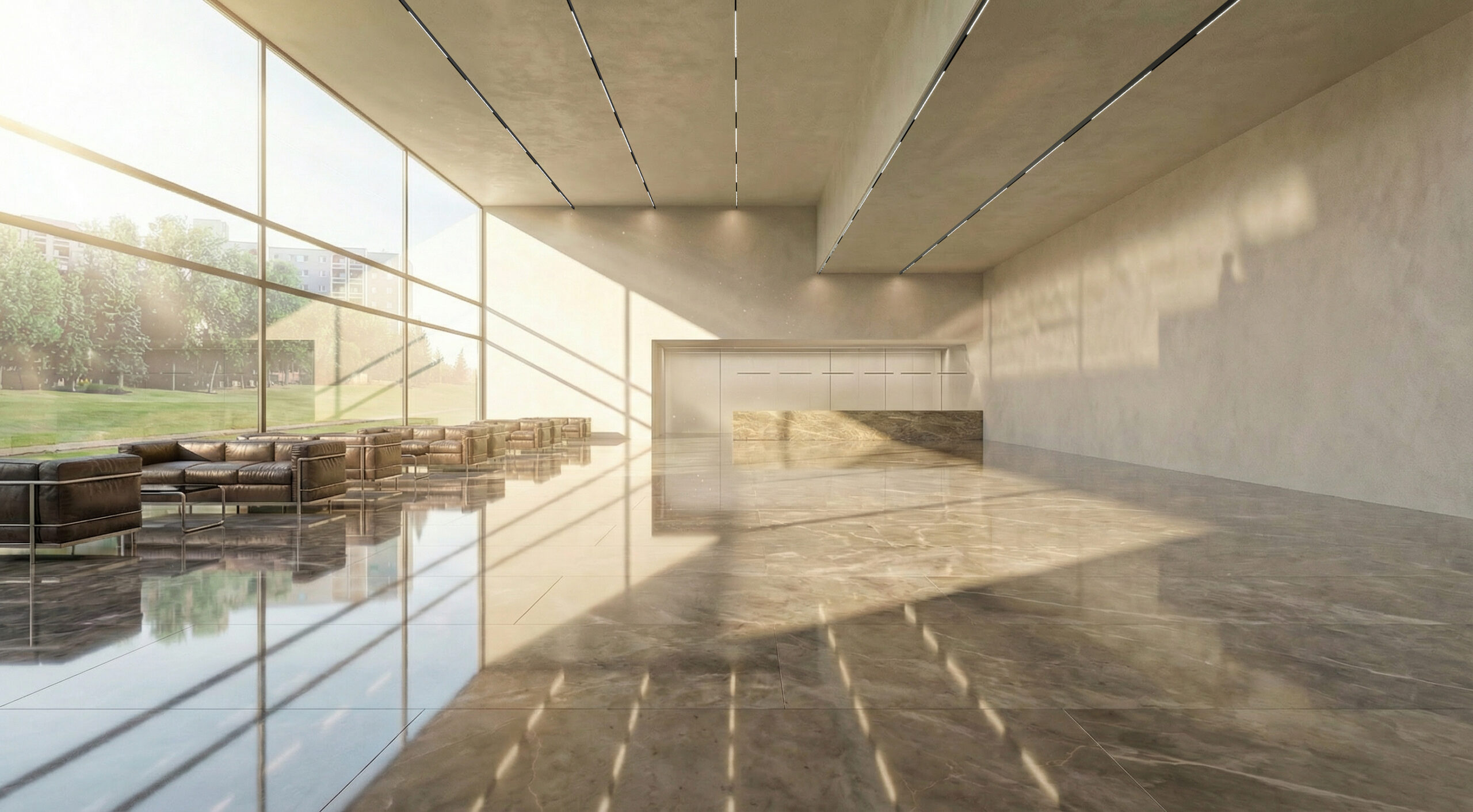

For this spacious lobby and reception area, a lighting solution was designed to provide precise illumination and excellent uniformity across varying ceiling heights from 3 m to 7 m. Variants of the LTwo® MAGNETIC, coordinated to suit the specific spatial conditions, are used together with the Lumami® LV TRACK for the 48 V MULTISYSTEM® EVO by A.A.G. Stucchi.

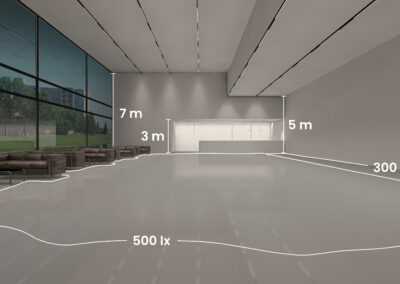

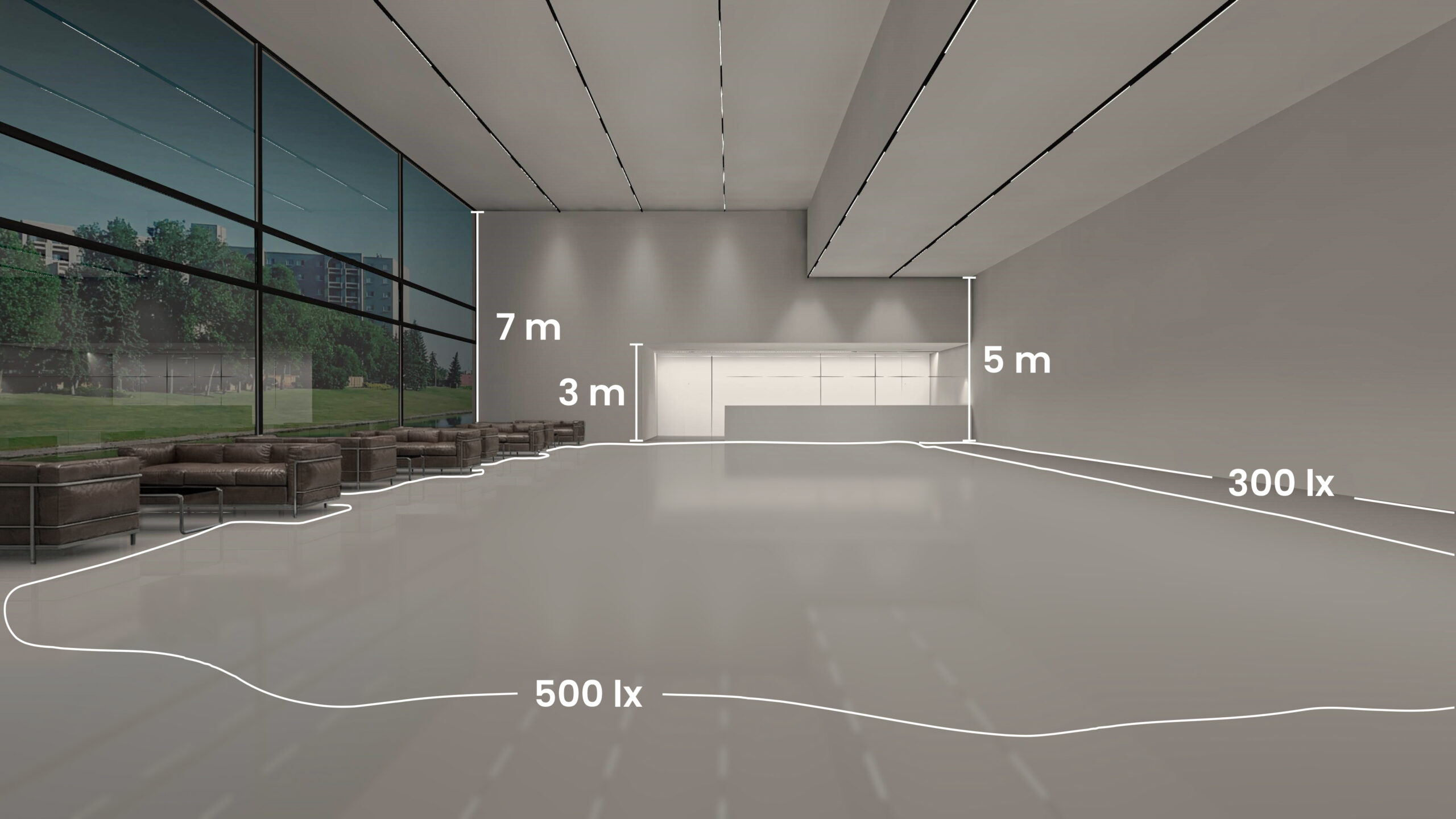

In the higher ceiling areas at 7 m, the LTwo® MAGNETIC with 40° optic was specified, while the zones with a ceiling height of 5 m use the 60° optic. For the lower areas with a ceiling height of 3 m, the LTwo® MAGNETIC with 60° optic was also planned, but in a shorter version. Above the reception desk, the LTwo® PENDANT with Batwing Wide optic provides targeted task lighting, while the cabinet wall is illuminated evenly using a wall-wash optic.

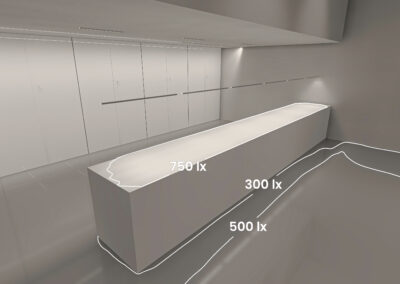

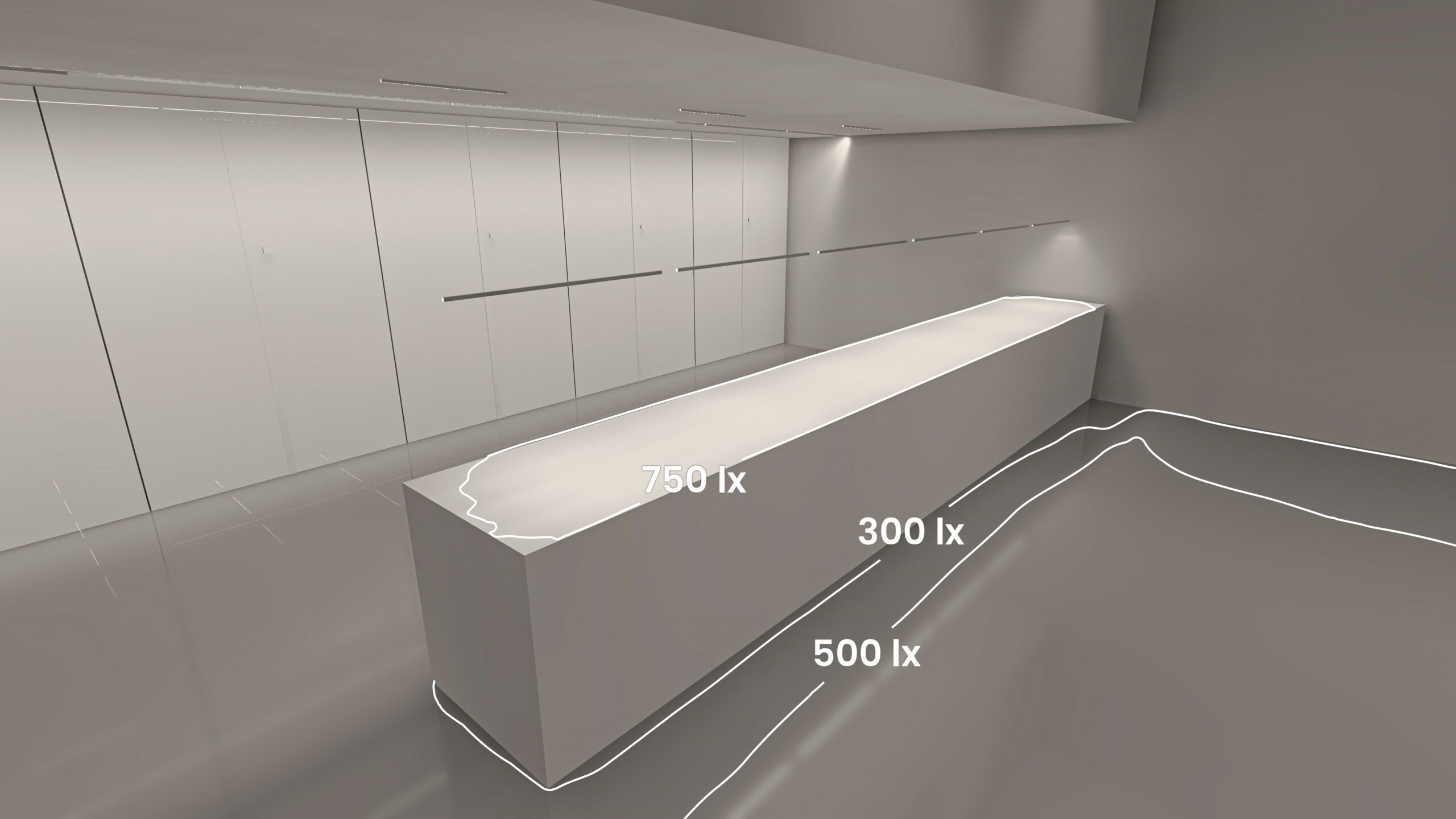

The differentiated lighting design achieves approx. 750 lx at the reception desk, 500 lx in the main areas, and 300 lx in the peripheral zones. The result is a calm, architecturally integrated lighting concept that combines orientation, visual comfort, and a consistent lighting effect throughout the entire spatial volume.
The following LTwo® variants were used for the lighting design:
- APL-LTwoT5-CC-25-40-1402-940-BB-MAG-IP40
- APL-LTwoT5-CC-25-60-1402-940-BB-MAG-IP40
- APL-LTwoT5-CC-25-60-842-940-BB-MAG-IP40
- APL-LTwoT5-CV-12-BWW-1420-940-BB-PD-IP40
- APL-LTwoT5-CC-25-WW-1402-940-BB-MAG-IP40
